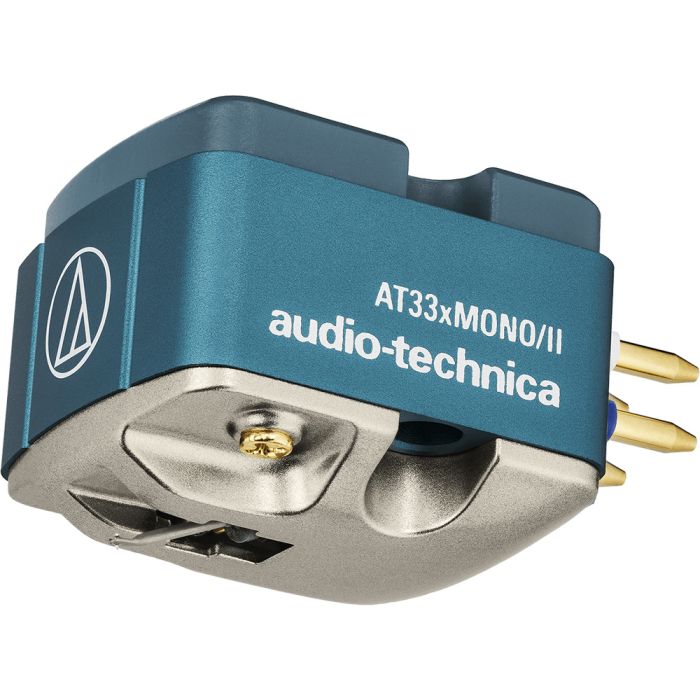

Audio Technica AT33xMONO/II MC Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Frequency Response - 20 to 20,000 Hz
- Vertical Tracking Angle - 20°
- Tracking Force - 2.3 to 2.7 g (2.5 g standard)
- Recommended Load Impedance - ≥ 100 ohms (when head amplifier connected)
- Coil Impedance - 10 ohms (1 kHz)
- DC Resistance - 10 ohms
- Coil Inductance - 27 μH (1 kHz)
- Output Voltage - 0.37 mV (1 kHz, 5 cm/sec., horizontal signal)
- Output Balance - 1.0 dB (1 kHz)
- Horizontal/Vertical Output Ratio - 25 dB (1 kHz)
- Stylus Shape - 6 × 10-6 cm/dyne (100 Hz)
- Cantilever - Duralumin pipe
- Static Compliance - 14 × 10-6 cm/dyne
- Dimensions - 16.1 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)
- Accessories Included - Non-magnetic screwdriver; Brush; Washer × 2; Cartridge installation screws (M2.6) (8.0 mm × 2, 10.0 mm × 2, 13.0 mm × 2); Protector
- Threaded Hole - M2.6 × 2
- Stylus Curvature Radius - 0.65 mil
- Weight - 10.2 g (0.36 oz)
Description
The Audio Technica AT33xMONO/II MC Phono Cartridge represents the latest evolution in the renowned AT33 Series, introducing greater warmth, fullness, and precision to monaural playback. This updated design incorporates significant material and engineering improvements, including the first-ever use of a die-cast zinc base to suppress unwanted resonance and enrich the mid to low frequency range.
By refining every component of its dual moving coil structure, Audio Technica has created a cartridge that allows listeners to rediscover their mono vinyl collection with stunning realism. Whether you are playing classic jazz, vocal, or orchestral recordings, the AT33xMONO/II delivers beautifully balanced analogue sound with exceptional clarity and authentic tonal character.
True Mono Dual Moving Coil Design
The AT33xMONO/II features Audio Technica’s exclusive “True Mono” dual moving coil configuration, designed to eliminate vertical noise interference and capture only the horizontal groove modulation found in monaural records. This innovative approach results in cleaner, more focused sound reproduction with a solid low end and reduced surface noise.
The dual coil structure also makes the cartridge fully compatible with stereo systems while maintaining pure mono output. High-efficiency samarium cobalt magnets and a pure iron yoke create a strong and stable magnetic field, ensuring powerful signal generation and refined dynamics. The result is an immersive, noise-free monaural experience with beautifully natural tonal balance across the audio spectrum.
Precision Tracking and Suspension Engineering
Engineered for accuracy and musicality, the AT33xMONO/II is equipped with a 0.65 mil nude conical stylus that precisely follows the consistent groove width of mono records. The stylus is mounted on a highly rigid duralumin pipe cantilever that enhances tracking stability and responsiveness.
A newly developed suspension system uses piano wire for improved precision and durability, while the optimized rubber damper slightly lowers dynamic compliance to deliver richer mid and low frequencies. These refinements result in a natural, full-bodied sound that conveys the warmth and texture of acoustic instruments, making it particularly suited for vintage jazz, vocal, and classical recordings from the golden age of mono vinyl.
Advanced Material Construction and Design
The cartridge body of the AT33xMONO/II combines die-cast zinc, aluminum, and high-rigidity polymer in a three-part composite structure that effectively minimizes internal resonance. This configuration provides balanced, natural sound reproduction without favoring any specific frequency range. PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure and uninterrupted signal transmission, enhancing clarity and channel separation.
Threaded mounting holes are integrated into the body for easy installation with only two screws, simplifying setup on both standard and integrated tonearms. Every detail of the AT33xMONO/II’s construction reflects precision craftsmanship, durability, and an unwavering commitment to sonic purity and ease of use.
Japanese Craftsmanship and Lasting Quality
Handcrafted and finished by skilled artisans in Japan, the Audio Technica AT33xMONO/II MC Phono Cartridge embodies the brand’s dedication to timeless quality and sound excellence. Thick gold-plated terminal pins reduce contact resistance and preserve signal integrity for superior long-term performance. With a frequency response of 20 to 20,000 Hz and a recommended tracking force of 2.5 grams, it offers both versatility and stability for a wide range of playback systems.
Audio Technica’s heritage, rooted in founder Hideo Matsushita’s passion for making high-fidelity sound accessible to all, continues in this cartridge. The AT33xMONO/II stands as a true representation of that legacy, combining technical mastery with musical emotion for discerning vinyl enthusiasts.
