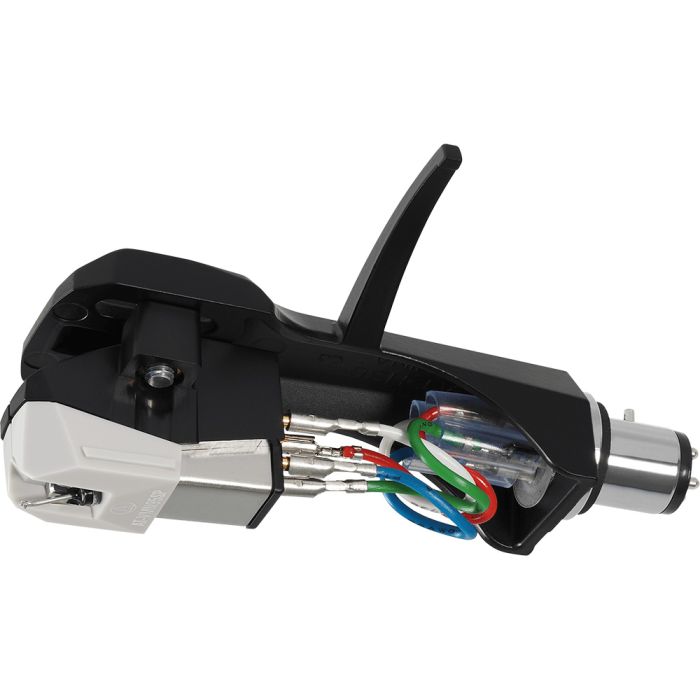

Audio Technica AT-VM95SP/H MM Phono Cartridge w/ Headshell
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Frequency Response - 20 - 20,000 Hz
- Vertical Tracking Angle - 23°
- Vertical Tracking Force - 4.5 to 5.5g (5.0g standard)
- Stylus Construction - Bonded Round Shank
- Recommended Load Impedance - 47,000 Ω
- Coil Impedance - 3.3 kΩ (1 kHz)
- DC Resistance - 485 Ω
- Coil Inductance - 550 mH (1 kHz)
- Output Voltage - 2.7 mV (@ 1 kHz, 5 cm/sec)
- Output Channel Balance - 1.5 dB (1 kHz)
- Stylus Shape - SP 3 mil Conical Bonded
- Cantilever - Aluminium Pipe
- Static Compliance - 12 x 10 – 6 cm / dyne
- Dynamic Compliance - 2 x 10 – 6 cm / dyne (100 Hz)
- Mounting - 1/2” centres
- Dimensions - 21.2 × 21.4 × 62.4 ( H x W x D mm)
- Model - AT-VM95SP/H
- Recommended Load Capacitance - 100-200 pF
- Replacement Stylus - AT-VMN95SP
- Stylus Size - 3 mil
- Type - VM Stereo Dual Magnet
- Weight - 15.5 g
- Wire Used for Coil - T.P. Copper
Description
The Audio Technica AT-VM95SP/H MM Phono Cartridge w/ Headshell forms part of the VM95 series with a 78rpm SP cartridge on AT-HS6 Headshell
- AT-VM95SP mounted on AT-HS6BK headshell
- The total set weight is 15.5g
- Assembled and tested in the Audio-Technica Factory in Fukui-Japan
