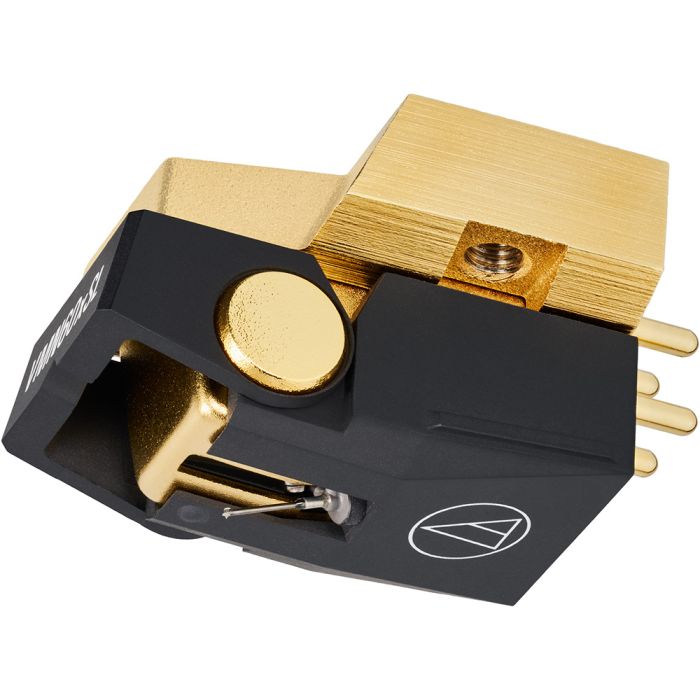

Audio Technica AT-VM760xSL MM Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Type - VM
- Frequency response - 20 to 30,000 Hz
- Output voltage - 3.7 mV (1 kHz, 5 cm/sec.)
- Channel separation - 26 dB (1 kHz)
- Output balance - 1.0 dB (1 kHz)
- Tracking force - 1.8 to 2.2 g (2.0 g standard)
- Coil impedance - 3.2 k ohms (1 kHz)
- DC resistance - 750 ohms
- Recommended load impedance - 47 k ohms
- Recommended load capacitance - 150 to 250 pF
- Coil inductance - 480 mH (1 kHz)
- Static compliance - 17.5 × 10-6 cm/dyne
- Dynamic compliance - 7 × 10-6 cm/dyne (100 Hz)
- Stylus - Special line contact
- Stylus curvature radius - 1.5 × 0.28 mil
- Cantilever - 0.28 mm (0.011”) diameter solid boron
- Vertical tracking angle - 20°
- Dimensions - 29.0 mm (1.1”) × 18.3 mm (0.72”) × 17.5 mm (0.69”) (H × W × D)
- Threaded hole - M2.6 × 2
- Weight - 8.8 g (0.31 oz)
Description
The Audio-Technica AT-VM760xSL MM Phono Cartridge stands at the apex of Audio-Technica’s VMx series, delivering uncompromising fidelity and depth for vinyl enthusiasts. Designed with dual magnets precisely aligned with the left and right stereo channels, this cartridge mirrors the geometry of the master cutting head to ensure outstanding channel separation and frequency response.
As part of the premium VMx series, the AT-VM760xSL brings greater warmth and realism to playback, with an expansive soundstage that captures every nuance of the music. Upgraded materials and a newly refined internal structure enhance the responsiveness of the cartridge, enabling it to express even the most delicate shifts in musical dynamics with extraordinary clarity.
Special Line Contact Stylus for Unmatched Detail
Equipped with an ultra-lightweight special line contact stylus, the AT-VM760xSL traces the grooves of your records with pinpoint accuracy. This stylus shape offers increased surface contact compared to elliptical designs, enabling an exceptional high-frequency response and capturing subtle spatial details in the music.
The stylus is mounted on a solid boron cantilever, an advanced material that is both stiffer and lighter than aluminum, allowing for signal transmission that is approximately 2.5 times faster. This combination results in a highly accurate and lifelike reproduction of complex musical passages, with minimal distortion. From orchestral crescendos to jazz improvisations, this cartridge brings every moment vividly to life.
High-Efficiency Generator with Premium Coil Design
At the core of the AT-VM760xSL is a paratoroidal generator structure featuring vertically stacked coils per channel, enhancing electromagnetic efficiency for superior audio performance. The coils are crafted from PCUHD® (Pure Copper Ultra High Drawability) wire, which delivers a richer and more nuanced audio signal.
A central shield plate reduces crosstalk between the channels, preserving a crisp, well-defined stereo image. With slightly fewer coil turns than earlier models, the cartridge benefits from improved transient response, meaning it reacts more quickly and accurately to signal changes. The result is a clean, dynamic sound that preserves the original intent and energy of the performance.
User-Friendly Mounting and Flexible Upgrades
Built with convenience in mind, the AT-VM760xSL features threaded inserts in its die-cast aluminum body, allowing for easy installation using just two screws—perfect for turntables with integrated tonearms. The flip-up stylus protector now includes a V-cut, offering a clear visual guide for positioning the stylus onto a record.
Like all models in the VMx series, this cartridge is compatible with a wide range of interchangeable stylus options (excluding mono versions), allowing users to tailor their sound or replace worn styli with ease. With its superior performance and thoughtful design features, the AT-VM760xSL is a compelling choice for audiophiles seeking precision, convenience, and flexibility.
