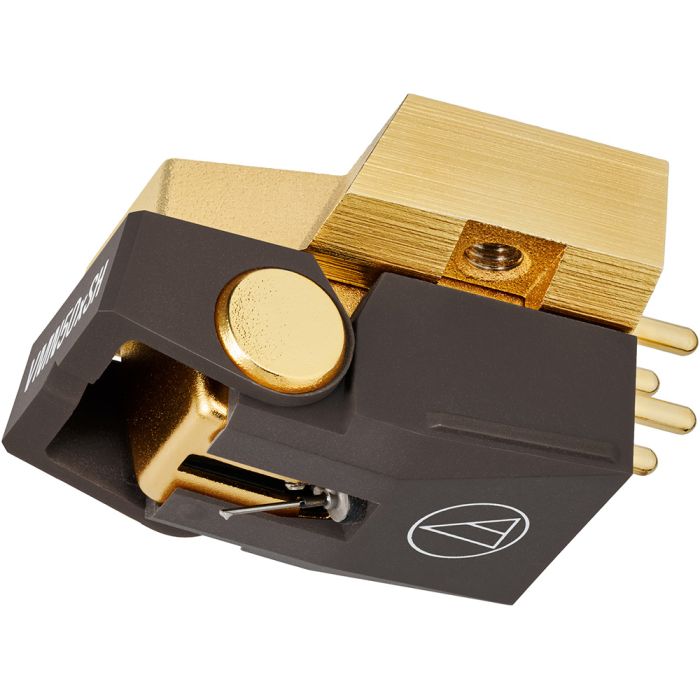

Audio Technica AT-VM750xSH MM Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Type - VM
- Frequency response - 20 to 27,000 Hz
- Output voltage - 3.7 mV (1 kHz, 5 cm/sec.)
- Channel separation - 26 dB (1 kHz)
- Output balance - 1.0 dB (1 kHz)
- Tracking force - 1.8 to 2.2 g (2.0 g standard)
- Coil impedance - 3.2 k ohms (1 kHz)
- DC resistance - 750 ohms
- Recommended load impedance - 47 k ohms
- Recommended load capacitance - 150 to 250 pF
- Coil inductance - 480 mH (1 kHz)
- Static compliance - 17.5 × 10-6 cm/dyne
- Dynamic compliance - 7 × 10-6 cm/dyne (100 Hz)
- Stylus - Stylus Nude Shibata
- Stylus curvature radius - 2.7 × 0.26 mil
- Cantilever - 0.28 mm (0.011”) diameter solid boron
- Vertical tracking angle - 20°
- Dimensions - 29.0 mm (1.1”) × 18.3 mm (0.72”) × 17.5 mm(0.69”) (H × W × D)
- Threaded hole - M2.6 × 2
- Weight - 8.8 g (0.31 oz)
Description
The Audio-Technica AT-VM750xSH MM Phono Cartridge exemplifies the pinnacle of Audio-Technica’s VMx series, bringing a new dimension of warmth, clarity, and realism to vinyl playback. Utilizing dual magnets aligned with the stereo record groove, it mirrors the original cutter head used in mastering, delivering superb channel separation and an extended frequency response.
This design ensures a wide and immersive soundstage, alive with musical detail and emotion. Enhanced with innovative materials and internal structural improvements, the VM750xSH captures the dynamic nuances of every performance, whether soft and subtle or powerfully expressive. It’s a cartridge made for audiophiles seeking faithful reproduction and an intimate connection to their music.
Shibata Stylus and Boron Cantilever for Dynamic Detail
A standout feature of the AT-VM750xSH is its nude Shibata stylus, designed for superior contact with the record groove. Compared to elliptical designs, the Shibata stylus retrieves ultra-high frequencies with reduced abrasion and distortion, translating to more detailed and lifelike playback.
This precision is enhanced by a solid boron cantilever, which is not only lighter and stiffer than aluminum but also transmits vibrations 2.5 times faster. The result is an accurate and responsive reproduction of even the most dynamic musical passages. Paired with a die-cast aluminum body that minimizes unwanted resonance, the cartridge delivers a clean, focused sound ideal for high-end turntables and serious vinyl enthusiasts.
High-Efficiency Coil Construction for Clean Playback
At the core of the AT-VM750xSH lies a paratoroidal coil configuration, incorporating PCUHD® (Pure Copper Ultra High Drawability) wire. With two vertically stacked coils per channel and a central shield plate to reduce crosstalk, this design dramatically enhances generating efficiency and stereo imaging.
A slight reduction in coil turns further refines the transient response, allowing the cartridge to react swiftly and accurately to changes in the audio signal. This results in impressively clean playback with natural depth and dimension. Whether it’s the sharp crack of a snare or the delicate pluck of a string, every moment is captured with immediacy and clarity.
Installation Simplicity and Upgrade Flexibility
Designed with user convenience in mind, the AT-VM750xSH features threaded inserts in its aluminum housing, allowing easy installation with only two screws—ideal for integrated tonearms. A newly added V-cut in the flip-up stylus guard provides a visual guide for precise cueing onto your records.
Like all VMx cartridges, it offers compatibility with a wide range of interchangeable styli (excluding mono models), making upgrades or tonal experimentation easy and cost-effective. Whether you're fine-tuning your system or replacing a worn stylus, the AT-VM750xSH offers flexibility and enduring performance in a refined and user-friendly package.
