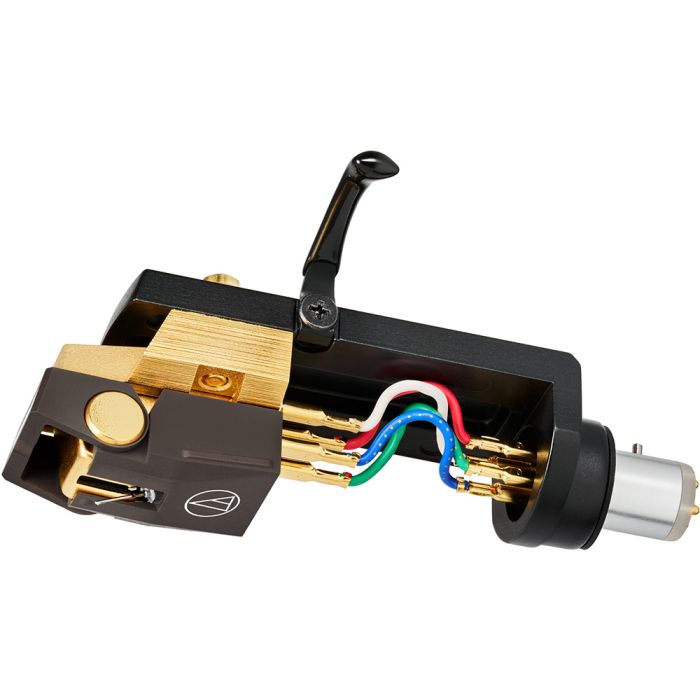

Audio Technica AT-VM750xSH/H MM Phono Cartridge w/ Headshell
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Type - VM
- Frequency response - 20 to 27,000 Hz
- Output voltage - 3.7 mV (1 kHz, 5 cm/sec.)
- Channel separation - 26 dB (1 kHz)
- Output balance - 1.0 dB (1 kHz)
- Tracking force - 1.8 to 2.2 g (2.0 g standard)
- Coil impedance - 3.2 k ohms (1 kHz)
- DC resistance - 750 ohms
- Recommended load impedance - 47 k ohms
- Recommended load capacitance - 150 to 250 pF
- Coil inductance - 480 mH (1 kHz)
- Static compliance - 20 × 10-6 cm/dyne
- Dynamic compliance - 7 × 10-6 cm/dyne (100 Hz)
- Stylus - Nude Shibata
- Stylus curvature radius - 2.7 × 0.26 mil
- Cantilever - 0.28 mm (0.011”) diameter solid boron
- Vertical tracking angle - 20°
- Dimensions - 68.4 mm (2.7”) × 18.5 mm (0.73”) × 21.5 mm (0.85”) (H × W × D)
- Weight - 20.3 g (0.72 oz)
Description
The Audio-Technica AT-VM750xSH/H MM Phono Cartridge w/ Headshell is a high-end cartridge and headshell combo built for audiophiles who demand precision and musicality. Featuring the AT-VM750xSH dual moving magnet cartridge, pre-mounted on the AT-LT10 universal ½"-mount headshell, this kit combines convenience with performance.
The cartridge is part of the refined AT-VMx series, known for its upgraded materials and design innovations that elevate sound quality. Offering dynamic, expressive playback, the VM750xSH delivers a compelling analog experience that captures both detail and depth. Whether you're rediscovering old favorites or exploring new pressings, this combo offers audiophile-level clarity and an effortless setup.
Shibata Stylus with Boron Cantilever for Supreme Detail
The standout feature of the AT-VM750xSH is its nude Shibata stylus, renowned for its extended line contact with record grooves. This stylus shape is exceptionally effective at retrieving ultra-high frequencies with minimal distortion and surface noise. Compared to previous models, the stylus tip is lighter, enabling finer groove tracing and improved accuracy.
The solid boron cantilever enhances this performance further by rapidly transmitting vibrations from the record to the coil, preserving transient details and subtle musical nuances. This combination ensures rich, high-resolution sound reproduction, particularly valuable for complex recordings and well-mastered vinyl releases where fidelity truly matters.
Superior Construction and Signal Isolation
Audio-Technica has designed the AT-VM750xSH with careful attention to construction to minimize unwanted resonance. The die-cast aluminum cartridge housing reduces vibrations, contributing to a clearer, more stable sound. Paratoroidal coil structures enhance channel separation and balance, while PCUHD® copper coils with fewer turns deliver a highly responsive, three-dimensional audio image.
A central shield plate isolates the left and right channels to reduce crosstalk, reinforcing clean stereo sound. Threaded inserts allow for simple installation on integrated tonearms, and the V-cut stylus guard provides a clear visual guide for precise stylus placement—an invaluable aid during setup and playback.
Versatility, Compatibility, and Easy Mounting
The AT-VM750xSH/H is compatible with any turntable headshell accepting standard ½" mount cartridges, and its pre-mounted design on the AT-LT10 headshell makes installation straightforward. The lightweight, die-cast aluminum headshell is engineered for minimal resonance and features elongated slots for accurate cartridge alignment.
Oxygen-free copper (OFC) lead wires maintain signal integrity, and a slip-resistant finger lift provides better handling during cueing. This combo is also compatible with most AT-VMx series replacement styli (excluding mono versions), offering flexible upgrade options for various budgets and listening preferences. The result is a versatile, performance-focused phono solution that will elevate any vinyl setup.
