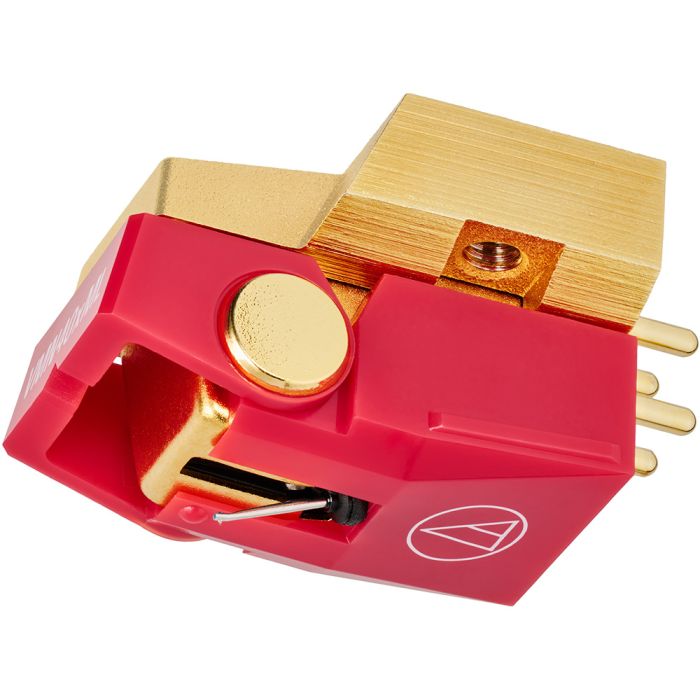

Audio Technica AT-VM740xML MM Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Type - VM
- Frequency response - 20 to 25,000 Hz
- Output voltage - 3.7 mV (1 kHz, 5 cm/sec.)
- Channel separation - 26 dB (1 kHz)
- Output balance - 1.0 dB (1 kHz)
- Tracking force - 1.8 to 2.2 g (2.0 g standard)
- Coil impedance - 3.2 k ohms (1 kHz)
- DC resistance - 750 ohms
- Recommended load impedance - 47 k ohms
- Recommended load capacitance - 150 to 250 pF
- Coil inductance - 480 mH (1 kHz)
- Static compliance - 20 × 10-6 cm/dyne
- Dynamic compliance - 7 × 10-6 cm/dyne (100 Hz)
- Stylus - Stylus Nude Microlinear
- Stylus curvature radius - 2.2 × 0.12 mil
- Cantilever - Aluminum tapered pipe
- Vertical tracking angle - 20°
- Dimensions - 29.0 mm (1.1”) × 18.3 mm (0.72”) × 17.5 mm (0.69”) (H × W × D)
- Threaded hole - M2.6 × 2
- Weight - 8.8 g (0.31 oz)
Description
The Audio-Technica AT-VM740xML MM Phono Cartridge delivers superior stereo performance as part of the premium VMx series. Designed to replicate the performance of the cutter head used in vinyl mastering, it utilizes a dual magnet setup that precisely aligns with the stereo groove’s left and right channels. This results in exceptional channel separation and extended frequency response.
Enhancements in materials and construction distinguish the VMx series from its predecessors, offering increased responsiveness and sonic realism. The AT-VM740xML is particularly sensitive to the fine dynamics of musical expression, providing an expansive soundstage filled with detail, clarity, and nuance—perfect for audiophiles who demand a rich and immersive listening experience from their vinyl setup.
Advanced Coil and Shielding Technology
Inside the AT-VM740xML is a paratoroidal coil generator system that stacks two PCUHD® (Pure Copper Ultra High Drawability) coils per channel. This configuration significantly boosts generating efficiency, leading to cleaner sound reproduction with enhanced channel balance and separation. A central shield plate helps minimize crosstalk between channels, preserving stereo imaging with remarkable clarity.
Additionally, the number of coil turns has been slightly reduced compared to previous models, improving transient response and allowing the cartridge to respond swiftly to audio signal shifts. These refinements translate into more lifelike music playback, giving listeners a sense of immediacy and emotional engagement with their records.
Microlinear Stylus Precision
The AT-VM740xML features a nude microlinear stylus that delivers exceptional groove tracking accuracy. This advanced stylus shape allows it to retrieve audio information that elliptical and conical styli often miss, resulting in more detailed, textured sound with reduced distortion and wear. Paired with a tapered aluminum cantilever, it ensures fast signal transmission and stable tracking across the record’s surface.
Designed with user convenience in mind, the die-cast aluminum body includes threaded inserts for hassle-free installation with only two screws. A thoughtfully redesigned flip-up stylus protector now features a V-cut notch, making it easier to visualize the stylus position when cueing up your records—an ideal feature for precise playback and record care.
Flexible, Durable, and Upgradeable
Built for long-term use and system flexibility, the Audio-Technica AT-VM740xML is compatible with any standard 1/2" mount turntable headshell. Its robust die-cast aluminum housing minimizes unwanted vibrations and resonance, ensuring signal purity even in demanding environments.
The cartridge body is also compatible with most AT-VMx series replacement styli (excluding mono models), offering users a customizable upgrade path based on their listening preferences and budget. Whether you're upgrading from an entry-level model or looking to refine your high-fidelity system, the AT-VM740xML offers versatility, build quality, and exceptional performance that make it a standout choice in modern analog audio playback.
