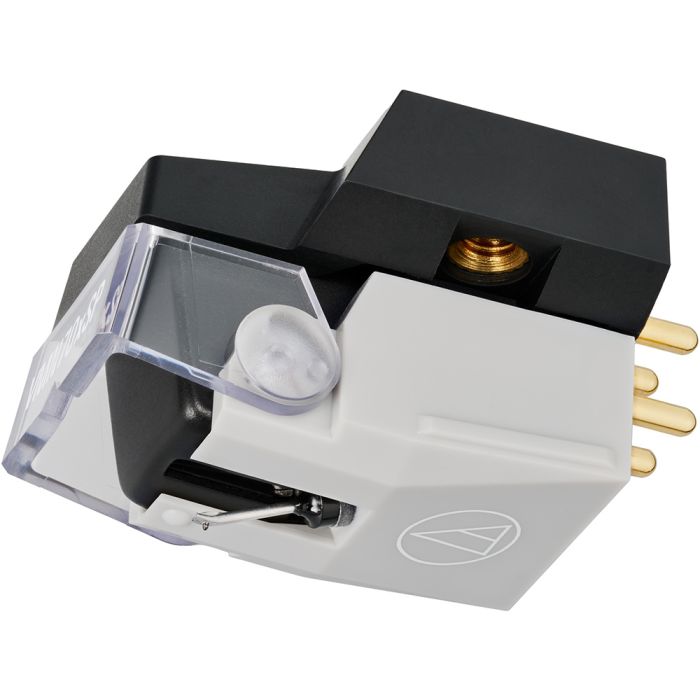

Audio Technica AT-VM670xSP Mono MM Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Type - VM
- Frequency response - 20 to 20,000 Hz
- Output voltage - 4.7 mV (1 kHz, 5 cm/sec.)
- Horizontal/vertical output ratio - 20 dB (1 kHz)
- Tracking force - 4.5 to 5.5 g (5.0 g standard)
- Coil impedance - 1.6 k ohms (1 kHz)
- DC resistance - 375 ohms
- Recommended load impedance - 47 k ohms
- Recommended load capacitance - 150 to 250 pF
- Coil inductance - 240 mH (1 kHz)
- Static compliance - 23 × 10-6 cm/dyne
- Stylus - Conical bonded
- Stylus curvature radius - 3.0 mil
- Cantilever - Aluminum pipe
- Vertical tracking angle - 20°
- Dimensions - 28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm(0.69”) (H × W × D)
- Threaded hole - M2.6 × 2
- Weight - 7.2 g (0.25 oz)
Description
The Audio-Technica AT-VM670xSP Mono MM Phono Cartridge is specially engineered for collectors and enthusiasts who enjoy the rich sonic history of 78 RPM records. As part of the VMx cartridge series, it brings new material and design upgrades that offer a more refined analog experience, delivering a warm, detailed sound that captures the energy of early recordings.
Its dual magnets are internally connected to focus the audio into a unified mono signal, reducing record surface noise and enhancing clarity. This configuration allows for a centered, impactful sound image that standard stereo cartridges simply can’t replicate when playing mono content—ideal for preserving the authenticity of vintage recordings.
Superior Sound Through Advanced Materials
Featuring PCUHD® (Pure Copper Ultra High Drawability) coils, the AT-VM670xSP ensures exceptional signal transmission and nuanced audio reproduction. By slightly reducing the number of coil windings, transient response is improved, enabling the cartridge to quickly and accurately respond to rapid changes in musical dynamics.
This results in a more immediate and lifelike listening experience. Combined with the cartridge's paratoroidal coil configuration—which improves electromagnetic efficiency and channel balance—this design enhances the overall audio fidelity. Whether you're listening to early blues, jazz, or classical recordings, this cartridge faithfully captures the essence and intricacies of 78 RPM pressings with stunning precision.
Precision Stylus for Archival Playback
At the forefront of the AT-VM670xSP is a 3.0 mil conical bonded stylus, expertly designed to navigate the wider grooves of 78 RPM records from various eras. The stylus tracks the groove with consistency and accuracy, delivering excellent fidelity while reducing distortion. Complementing this is a lightweight aluminum cantilever that ensures steady performance and durability across countless playbacks.
Audio-Technica has also equipped this cartridge with threaded inserts for tool-free mounting using just two screws—streamlining installation on a wide range of tonearms, especially those integrated into modern high-end turntables. A practical V-cut in the flip-up stylus guard provides a visual reference for accurate cueing, minimizing wear and damage.
Durable Build and Flexible Compatibility
Built with a low-resonance polymer body, the AT-VM670xSP offers mechanical stability and reduced vibrations, helping preserve sonic integrity during playback. The mono cartridge design terminates both channels together, further minimizing surface noise and emphasizing audio clarity. Its standard 1/2" mount fits most turntable headshells, making it a convenient upgrade for archival playback systems.
With a recommended tracking force of 5.0 grams, it ensures optimal groove contact while preserving record longevity. The cartridge is also compatible with the AT-VMN70xSP replacement stylus, allowing users to maintain peak performance over time. Whether you're a serious archivist or a casual listener exploring early music, this cartridge delivers a faithful mono experience.
