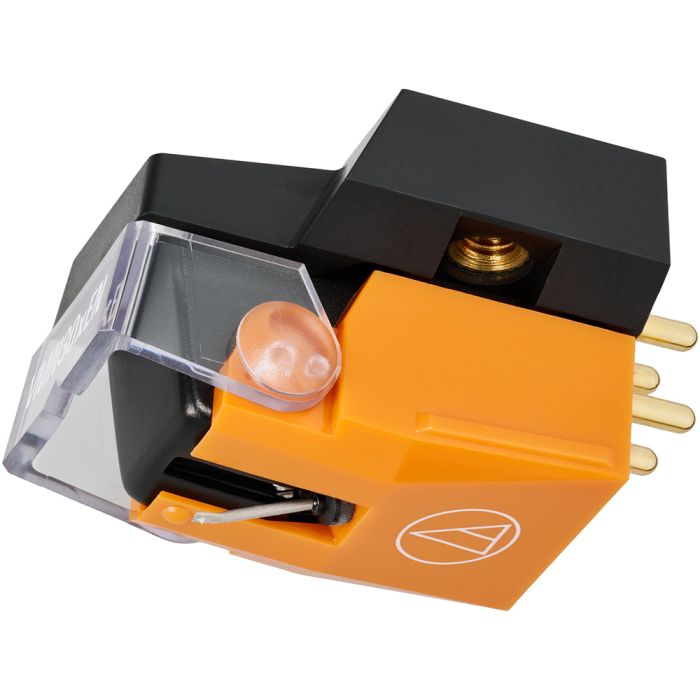

Audio Technica AT-VM530xEN MM Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Type - VM
- Frequency response - 20 to 25,000 Hz
- Output voltage - 3.2 mV (1 kHz, 5 cm/sec.)
- Channel separation - 25 dB (1 kHz)
- Output balance - 1.5 dB (1 kHz)
- Tracking force - 1.8 to 2.2 g (2.0 g standard)
- Coil impedance - 3.2 k ohms (1 kHz)
- DC resistance - 750 ohms
- Recommended load impedance - 47 k ohms
- Recommended load capacitance - 150 to 250 pF
- Coil inductance - 480 mH (1 kHz)
- Static compliance - 23 × 10-6 cm/dyne
- Dynamic compliance - 7 × 10-6 cm/dyne (100 Hz)
- Stylus Stylus - Nude elliptical
- Stylus curvature radius - 0.3 × 0.7 mil
- Cantilever - Aluminum pipe
- Vertical tracking angle - 20°
- Dimensions - 28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm (0.69”) (H× W × D)
- Threaded hole - M2.6 × 2
- Weight - 7.2 g (0.25 oz)
Description
The Audio-Technica AT-VM530xEN MM Phono Cartridge is engineered to bring out the full depth and dimension of your vinyl collection, offering an immersive audio experience that’s both warm and lifelike. As part of the advanced VMx series, this cartridge uses a dual moving magnet design that mirrors the cutter head used in vinyl mastering.
Two precisely placed magnets correspond with the left and right channels of a stereo groove, delivering outstanding channel separation and an extended frequency response. Upgrades to materials and internal design offer enhanced responsiveness, allowing the cartridge to handle subtle musical dynamics with impressive sensitivity and clarity, elevating your analog listening experience to audiophile standards.
Refined Generator Design for Pure, Nuanced Sound
At the heart of the AT-VM530xEN is Audio-Technica’s paratoroidal coil construction, featuring dual coils per channel arranged for maximum electromagnetic efficiency. These coils are crafted from PCUHD® (Pure Copper Ultra High Drawability), a premium material that ensures richer and more refined sound reproduction.
Fewer coil turns enhance transient response, allowing the cartridge to react faster and more accurately to signal changes. A center shield plate between the left and right coils reduces crosstalk, maintaining a vivid and accurate stereo image. The result is clean, precise sound with superb detail and dynamic range, perfect for both seasoned vinyl enthusiasts and new listeners seeking high-fidelity performance.
Advanced Stylus Technology and User-Centric Features
Equipped with a nude elliptical stylus measuring 0.3 x 0.7 mil, the AT-VM530xEN offers lower mass and greater precision than bonded alternatives, enabling more accurate groove tracing and reduced distortion. This lightweight stylus improves frequency response, translating into cleaner highs and tighter bass.
To simplify installation, the cartridge body includes threaded inserts that eliminate the need for mounting nuts—just two screws secure the cartridge to most tonearms, including those integrated into high-end turntables. Additionally, a newly designed stylus protector features a V-cut that helps users visually align the stylus when lowering it onto a record, minimizing the risk of mishandling and ensuring smoother operation.
Versatile Compatibility and Upgrade Flexibility
The Audio-Technica AT-VM530xEN offers flexibility and longevity through its compatibility with a wide range of AT-VMx replacement styli (excluding mono models). This interchangeable design allows users to customize or upgrade their listening experience without replacing the entire cartridge.
The cartridge is compatible with any standard 1/2" mount headshell and supports a frequency response from 20 to 25,000 Hz, with a recommended tracking force of 2.0 grams. With its low-resonance polymer housing, aluminum cantilever, and industry-standard electrical specifications, the AT-VM530xEN is a high-performance, future-ready phono cartridge that meets the needs of both casual vinyl lovers and serious audiophiles.
