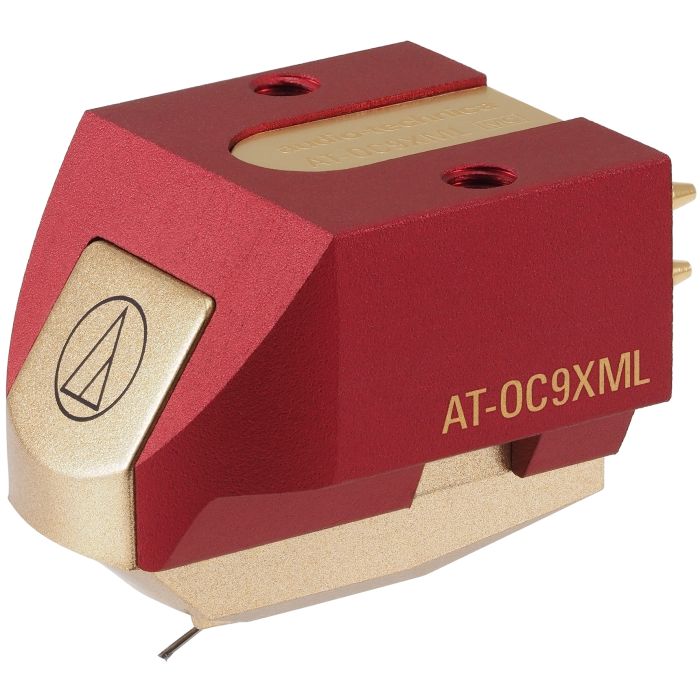

Audio Technica AT-OC9XML MC Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Type: Dual Moving Coil
- Body Material: Aluminum
- Frequency Response: 20-47,000 Hz
- Channel Separation: 27 dB (1 kHz)
- Vert Track: 20°, 1.8-2.2g (2g stnd)
- Recommended Load: Min. 100 ohms
- Impedance: 12 ohms (1kHz) (Coil/DC)
- Coil Inductance: 25mH (1 kHz)
- Output: 0.4mV (@1kHz, 5cm/s)
- Channel Balance: 1.0dB (1 kHz)
- Stylus Shape: Microlinear
- Stylus Type: Nude square shank
- Stylus Curvature: 2.2 x 0.12 mil
- Cantilever: 0.28mm diameter nude boron
- Static: 20 x 10-6 cm/dyne
- Dynamic: 16 x 10-6cm/dyne (100 Hz)
- Wire Used for Coil: PCOCC
- Terminal Pins: Brass
- Mount: Half-inch
- Mounting Feature: Threaded body
- Dimensions (HWD): 17.3 × 16.8 × 25.7mm
- Weight: 7.6 g (0.3 oz)
Description
Audio Technica AT-OC9XML dual MC Phono Cartridge features a nude square shank microlinear stylus mounted on a 0.28mm diameter nude boron cantilever that set it apart from the rest of the OC9X series cartridges and facilitates in acheiving stunning channel separation.
PCOCC Coil
For flawless audio reproduction, AT-OC9XML uses pure copper coils attained via ohno continuous casting process. These are set in a reverse V-formation that affords lower extertion of pressure on the stylus to lower distortion.
Sound Quality
To reinforce sound quality, the rigid aluminium enclosure reduces resonance while a neodymium magnet coupled with permedur yoke work together to dramatically enhance magnetic energy. The nude microlinear stylus traces the groove of your record accurately for the ultimate full-scale rich audio with high transient response. The pre-threaded cartridge body can be effortlessly mounted on a headshell or central tonearm using just two screws with no need for nuts.
Key Features
- Dual MC design with independent L/R coils for outstanding channel separation
- Aligned coils in a reverse V-shape which exerts less pressure on the stylus
- The cartridge body is pre-threaded for mounting on headshell or integral tonearm
- Nude Microlinear stylus and boron cantilever provide lower distortion and high transient respons
- A neodymium magnet and permendur yoke provide dramatically increased magnetic energy
- Aluminum body lowers unwanted vibration for reduced resonance and better audio
- Pure Copper by Ohno Continuous Casting process for coils achieve pure signal transfer
