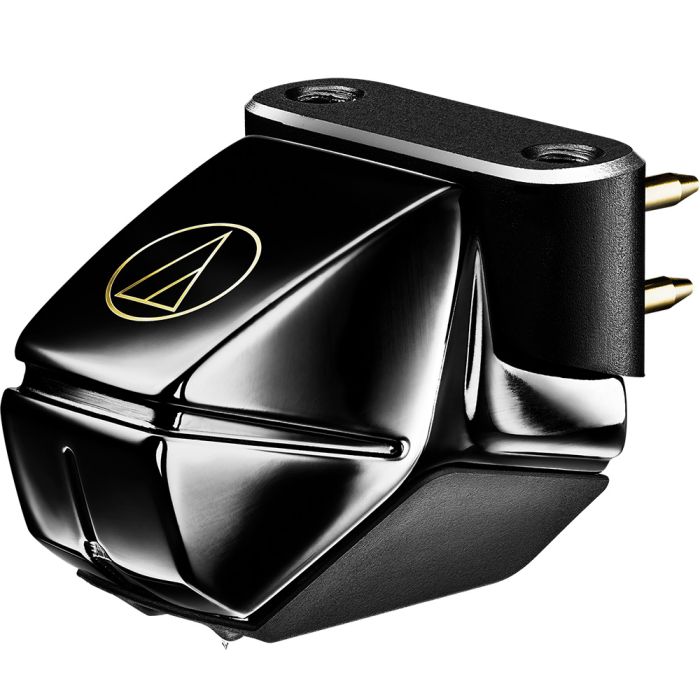

Audio Technica AT-MCD1 MC Phono Cartridge

The Audio Technica AT-MCD1 MC Phono Cartridge represents the pinnacle of Audio-Technica’s analogue engineering achievements and stands as one of the finest phono cartridges the company has ever produced.

Building upon the groundbreaking innovations introduced in the acclaimed AT-MC2022 anniversary model, the AT-MCD1 pushes performance even further, delivering an extraordinary level of musical realism, precision, and emotional engagement. Recognised as an Audio-Technica Excellence Product, it has been developed to meet the brand’s highest standards of sonic performance and craftsmanship.

Every component has been carefully refined to extract the maximum amount of information from the record groove, revealing subtle details, expansive soundstaging, and remarkable dynamic expression. Designed for the most discerning vinyl enthusiasts, the AT-MCD1 offers a listening experience that captures the full artistry and authenticity of analogue recordings.

Revolutionary One-Piece Diamond Construction

At the heart of the Audio Technica AT-MCD1 MC Phono Cartridge lies a remarkable engineering achievement: a unified stylus and cantilever formed from a single piece of lab-grown diamond. This advanced construction eliminates the traditional bonding point between stylus and cantilever, removing a common source of energy loss and distortion.

The result is an exceptionally pure mechanical pathway that transfers groove information with extraordinary accuracy and speed. The lightweight 0.22mm square diamond cantilever, produced using an advanced chemical vapour deposition process, offers outstanding rigidity and ultra-fast transient response.

Combined with a newly developed integrated Shibata stylus profile featuring a highly refined 2.7 × 0.08 mil tip radius, the cartridge traces groove modulations with remarkable precision. This innovative design allows the AT-MCD1 to retrieve delicate details, preserve harmonic complexity, and deliver exceptional high-frequency extension.

Advanced Moving Coil Generator Technology

The Audio Technica AT-MCD1 MC Phono Cartridge employs a sophisticated dual moving coil architecture designed to achieve exceptional channel separation, signal purity, and imaging accuracy. Two independently positioned PCOCC (Pure Copper by Ohno Continuous Casting) moving coils are carefully located at the cantilever fulcrum, ensuring highly accurate signal generation for each channel.

Supporting this design is a dedicated magnetic circuit derived from Audio-Technica’s most advanced moving coil developments, generating powerful magnetic flux density while maintaining optimal coil impedance.

This highly efficient system produces an output voltage of 0.55mV and delivers outstanding channel separation of 28dB at 1kHz, creating a spacious and precisely focused stereo presentation. The result is a cartridge capable of reproducing music with remarkable transparency, tonal accuracy, and realism, allowing listeners to experience recordings with exceptional depth and naturalness.

Precision Engineering and Resonance Control

Every aspect of the Audio Technica AT-MCD1 MC Phono Cartridge has been engineered to minimise unwanted resonance and maximise sonic performance. The cartridge body combines a precision-machined titanium housing with a rigid aluminium base and a specially designed elastomer underlayer.

This hybrid construction effectively disperses unwanted vibrations and prevents mechanical interference from colouring the sound.

The titanium housing provides exceptional rigidity while remaining lightweight, ensuring stable performance and accurate tracking under demanding conditions. High-quality sound terminal pins feature 3-micron gold plating to reduce contact resistance and maintain signal integrity throughout the audio chain.

Threaded mounting holes simplify installation and ensure secure attachment to headshells and integrated tonearms. Together, these carefully selected materials and design elements create a highly stable platform that allows the advanced moving coil generator and diamond cantilever system to perform at their full potential.

Crafted by Japanese Artisans

The Audio Technica AT-MCD1 MC Phono Cartridge is not only a technical masterpiece but also a showcase of traditional Japanese craftsmanship. Each cartridge is meticulously handcrafted and hand-finished by skilled artisans in Japan, reflecting Audio-Technica’s longstanding dedication to quality and precision. Every unit is individually engraved with a unique serial number, highlighting its exclusivity and attention to detail.

The cartridge is supplied in a beautifully crafted solid cherry wood presentation case that provides both protection and an elegant display solution. Environmentally conscious packaging utilises paper-based materials wherever possible, reflecting a commitment to sustainability without compromising presentation quality.

From the careful assembly of its internal components to the final finishing touches, the AT-MCD1 exemplifies the meticulous workmanship that has made Audio-Technica one of the most respected names in analogue audio for more than six decades.

Reference-Level Performance for Serious Vinyl Enthusiasts

Designed for listeners who demand the very highest standards of analogue playback, the Audio Technica AT-MCD1 MC Phono Cartridge delivers truly reference-level performance across every aspect of its operation. Its wide frequency response extending from 20Hz to 50kHz captures both the deepest bass information and the finest high-frequency detail with remarkable accuracy.

With a recommended tracking force of just 1.8 grams and carefully optimised compliance characteristics, the cartridge offers excellent groove tracking while preserving record longevity.

The combination of its one-piece diamond construction, advanced Shibata stylus, dual moving coil generator, and resonance-controlled body produces a sound that is richly detailed, dynamically expressive, and effortlessly natural. Instruments and voices emerge from a silent background with stunning realism, while spatial cues and harmonic textures are reproduced with extraordinary precision. The AT-MCD1 represents the ultimate expression of Audio-Technica’s analogue expertise.
