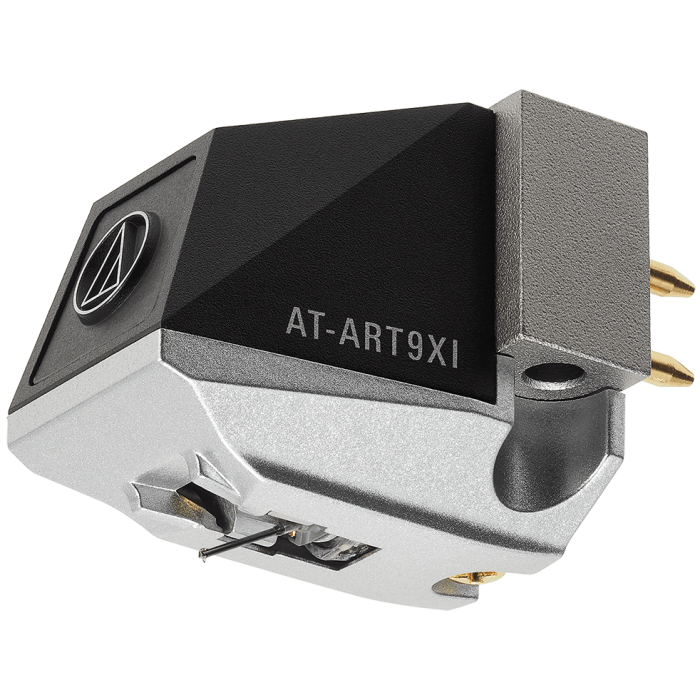

Audio Technica AT-ART9XI MC Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Freq Response: 20-50k Hz
- Channel Separation: 30dB (@1kHz)
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 1.6-2g (1.8 g stnd)
- Stylus Construction: Nude
- Load Impedance: Min. 100 ohms
- Coil Impedance: 12 ohms (1 kHz)
- DC Resistance: 12 ohms
- Coil Inductance: 25 µH (1 kHz)
- Output Voltage: 0.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 0.5 dB (1 kHz)
- Stylus Shape: Special line contact
- Cantilever: 0.28mm diameter solid boron
- Static Compliance: 25 x 10-6 cm/dyne
- Dynamic Compliance: 15 x 10-6 cm/dyne (100 Hz)
- Mounting: Half-inch
- Threaded Hole: M2.6 x 2
- Dimensions (HWD): 17.3 × 16.8 × 25.0mm
- Weight: 8.5 g (0.30 oz)
Accessories Included
- Non-magnetic screwdriver
- 2 washers
- Cartridge install screws (M2.6) (2x 5/8/10/12mm)
- Protector; brush
Description
Audio Technica AT-ART9XI MC Phono Cartridge is the new flagship magnetic core MC cartridge from Audio Technica, replacing the AT-ART9 and featuring a special line contact stylus on a 0.28mm diameter solid boron cantilever.
Reference Transducer
The “ART” in the name stands for Audio-Technica Reference Transducer, a designation given only to the brand's flagship phono cartridges. The specially designed magnetic circuit boasts a 0.5mV output (1kHz, 5cm/sec), making ART9XI easy to use and capable of reproducing the most delicate expressions while ensuring dynamic playback.
The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response for clear sound localization and minimal distortion. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy.
Key Features
- Audio-Technica’s flagship magnetic core moving coil cartridge
- Dual moving coils are aligned in an inverted V shape
- High separation and wide response for clear sound localisation and minimal distortion
- Special line contact stylus ensures faithful reproduction of the music signal
- 0.28mm diameter solid boron cantilever provides excellent response characteristics
- Neodymium magnet and permendur yoke significantly increase magnetic energy
- Specially designed magnetic circuit provides an output voltage of 0.5mV (1 kHz, 5 cm/sec)
- PCOCC coils ensure high-fidelity transmission
- Machined aluminum base supports magnetic circuit and vibration system for excellent stability
- Hybrid machined aluminum and high-rigidity plastic body reduces parasitic resonance
- Threaded cartridge mounting holes allow easy installation to headshell or integrated tonearm
