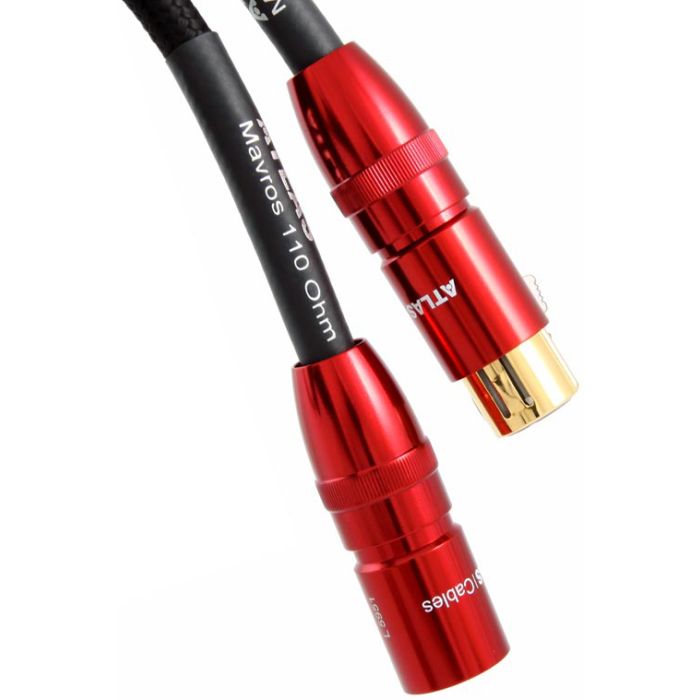

Atlas Mavros OCC AES/EBU Digital Cable
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 5 years (on registration) |
| Product Type | Other |
Tech Specs
- Construction - Symmetrical/Stranded
- Conductor - Silver-plated OFC
- Dielectric - Microporous PTFE/PEF
- Screen - Foil/OFC braid
- Capacitance - 41.27 pF/m
- Inductance - 0.728 µH/m
- Resistance - 0.0029 Ohms/m
- Outside Diameter - 9 mm
- Colour/Finish - Black Fabric/Luxe options
Description
Atlas Mavros OCC AES/EBU Digital Cable is engineered with extremely precise transmission and termination standards, incorporating the same microporous PTFE (Teflon) dielectric insulation as the other Mavros interconnects.
The centre conductor is comprised of a monofilament conductor and 18 strands of super pure copper wire insulated by a thin layer of microporous PTFE. Designed for ‘high-end’ digital balanced systems as employed by DCS, Meridian and many professional recording studios.
Enhancing Signal
This new dielectric behaves almost like the theoretically perfect insulator with minimal effect on the signal. The previous highest performance insulator, solid PTFE, has a dielectric constant of around 2.1 whilst the new PTFE (Teflon) foam improves this figure to around 1.5, providing a 30% greater signal velocity and better signal integrity, particularly in the high-frequency timing and stability.
Double Shielding
The co-axial double shielding layers are an aluminum Mylar foil followed by OFC braiding after which the whole cable is protected by a PVC jacket damped with cotton yarn. With a consistent termination impedance, the Mavros OCC AES/EBU interconnect perfectly matches professional digital audio equipment to ensure error-free transmission of high-speed digital signals. The result is evident in the timing and dynamic range of musical performances where the temporal ‘smearing’ of lesser cables is absent.
