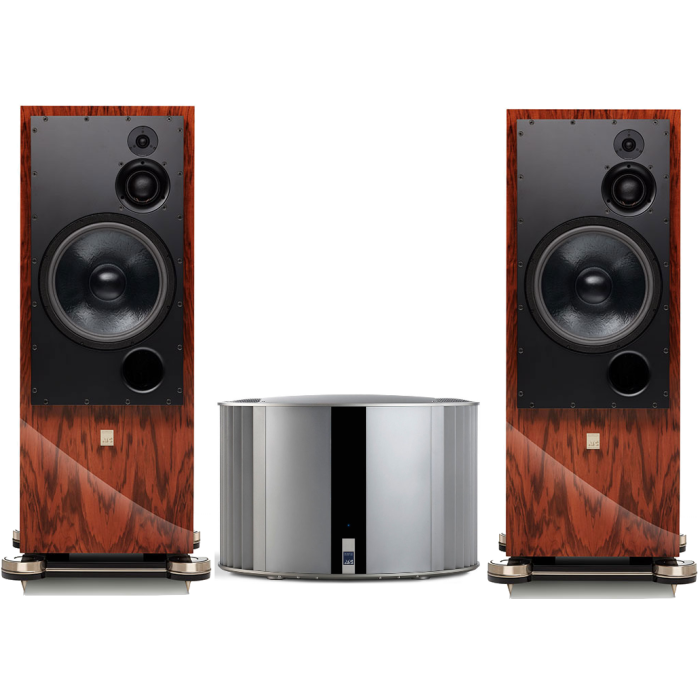

ATC SCM150ASLT Limited Edition Speakers (Pair) with P6 Amp
In stock
This item isn't available to buy online. Please contact us to order or for more information.
Usually ships within 3-4 weeks. Order now to reserve your place in the queue
Features
| Removable Grilles | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 6 Years |
| Product Type | Other |
Tech Specs
Drivers
- HF: SH25-76S 25mm Dual Suspension Tweeter
- MF: SM75-150S Super Dome Mid-Range Driver
- LF: SB75-375SL Super Linear Bass Driver
- Amplitude Linearity (±2dB): 60Hz–17kHz
- Frequency Response (-6dB): 25Hz–25kHz
- Matched Response: ±0.5dB
- Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
- Max SPL: 117dB
- Crossover Frequencies: 380Hz & 3.5kHz
- Connectors: LEMO aerospace-grade
- Cabinet Dimensions (HxWxD): 1395x606x626mm (inc. plinth and spikes)
- Overall Weight: 146kg (inc. shipping crate), 116kg (approx exc. shipping crate)
P6
- Output Power/Stereo Ch. (RMS):
- HF: 50 watts into 6 ohms,
- MF: 100 watts into 16 ohms,
- LF: 200 watts into 8 ohms.
- Input Sensitivity: 1V RMS
- Input Impedance: 5k ohms
- Frequency Response: 5Hz – 200KHz ±0.1dB (ignoring mid amp filters)
- Signal/Noise Ratio: Better than 105dB
- TDH: Better than 90dB/0.0032%
- Filters: All active with overload protection
- Power Requirements: Voltage: 110, 115, 230 (factory set)
- Frequency: 50/60Hz (region dependent, factory set)
- Dimensions (HxWxD): 427x634x318mm
- Weight: 50.5kg
- Power Requirements: Voltage : 110, 115, 230V (factory set), Frequency : 50/60Hz (factory set)
Description
ATC SCM150ASLT Limited Edition Speakers (Pair) with P6 Amp is an extremely limited edition hifi package with only a run of 22 pairs available. The SCM150ASLT speakers are sleek, cool and provide a full range sound, with clarity, realism and power. So get it while you can!
Why the SCM150ASLT LE Speakers?
ATC’s Limited Edition SCM150ASLT speaker pair is an active set of three-way floorstanders that ultilise the very best of ATC’s audio engineering, craftsmanship and performance. Inside these limited edition speakers sits ATC’s latest proprietary drivers: the SH25-76S tweeter, the SM75-150 S Soft Dome Mid driver and the 375mm SL (Super Linear) Spec Bass driver.
Breathtaking Performance
The performance from these exclusive speakers is like no other, producing a sound that is natural, effortlessly powerful, accurate and with a transient response. The combination of unique audio engineering and cabinetmaking, provides wide, but even dispersion for pin-point imaging.
Hand Built and Expertly Crafted
Each SCM150ASLT speaker has been individually hand-built in England, from the drivers to the enclosure. ATC’s very own expert team of cabinetmakers make the enclosure from 18mm MDF and is finished in high-gloss, hand-selected European Crown-Cut Walnut real wood veneer. They also come with a removable cloth grille, so these speakers will look great in whatever room your choose.
P6 Amp
The P6 amplifier is a high-performance Class A/B dual mono power amp, designed to get the most out of the SCM150ASLT Limited Edition speaker. The P6 amp drives each speaker independently with it’s 3-way electronic crossover, (3 channels for each speaker) and uses 200W for the low frequency, 100W for the mid range and 50W for high frequencies. You really get the most with this amp and speaker combination.
Aerospace Grade LEMO connectors
To connect the P6 amp to the limited edition speakers, an aerospace-grade LEMO multi-pin socket, placed at the rear of the amp on a PVD-coated stainless steel plate, is fitted so you can ultilise the outboard tri-amp power pack.
Proprietary 3m loudspeaker cables are included.
