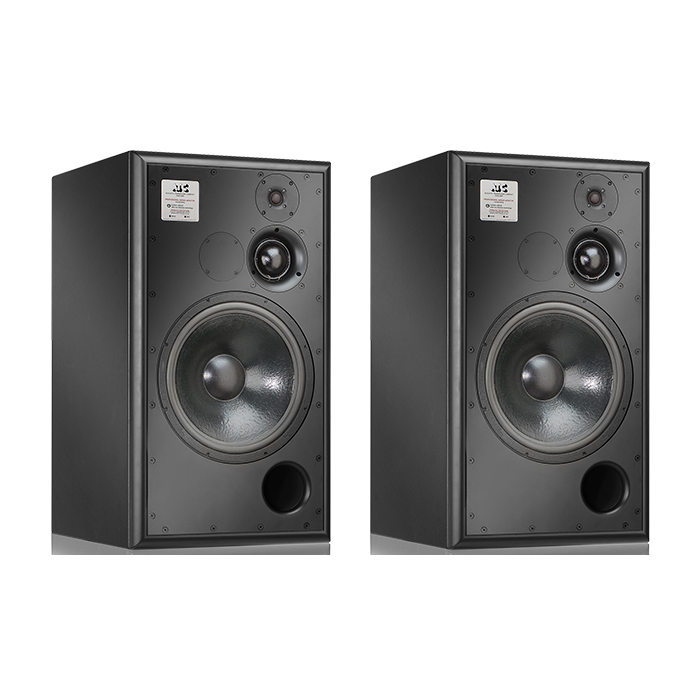

ATC SCM150ASL Active Speakers (Pair)
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 6 Years |
| RCA Output | No |
| 3.5mm Input | Yes |
| 3.5mm Output | No |
| Headphone Socket | No |
| Radio | No |
| Product Type | Other |
Tech Specs
- Drivers: HF 25mm Mid 75mm LF 375mm Super Linear
- Amplitude Linearity ±2dB: 60Hz – 17kHz
- Frequency Response -6dB: 25Hz & 22kHz
- Vertical Dispersion: ±10°, Coherent
- Max. Continuous SPL (1 metre): 117dB
- Crossover Frequencies: 380Hz, 3.5kHz
- Input Connectors: Male XLR
- Input Sensitivity: 1V
- Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
- Input Impedance: Balanced > 10kΩ
- Amplifier Output: Bass 200W, Mid 100W, High 50W
- Filters: Even Order Critically Damped
- Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
- Front Panel Indicators: Power On indicator, Gain Reduction warning
- LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
- Dimensions (HxWxD): 884 x 498 x 568mm (34.8˝ x 19.6˝ x 22.4˝) Depth with amplifier at rear adds 3˝
- Weight: 75kg / 165lbs
Description
ATC SCM150ASL Active Speakers is the largest of the free standing speakers in the range. It sits above the SCM100 and SCM50 and is available in an array of beautiful real wood finishes.
Excellent Sound Reproduction
Similar to the other models in the series SCM150ASL can reproduce sound with amazing dynamics. Its impressive sound quality is result of the SM75-150's soft dome midrange driver. An enhanced S-Spec Tweeter and improved port also drive the overall success of this speaker, delivering all the detail, precision and power for the best listening experience possible.
Wide-Ranging Sound
The model effortlessly offers a wide and well balanced dispersion, brilliant amplitude and phase features across the audio frequency range. It can produce a punchy bass and intricately detailed highs at loud volumes without causing fatigue for the ears.
Real Wood Finishes
Choose from beautiful real wood finishes in rosewood, walnut, oak, pippy oak, maple, black ash or cherry. ATC's wide range of colours cater for so many different tastes that you are bound to love one if not more of the options available.
Please contact us to arrange a demonstration or if you have any questions.
Key Features
- ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
- Full “SL” spec 15˝/375mm bass driver.
- ATC 75mm “Super Dome” mid driver.
- On board ATC grounded source 350W Tri-Amp Pack.
- LF contour control.
- Clip indication
