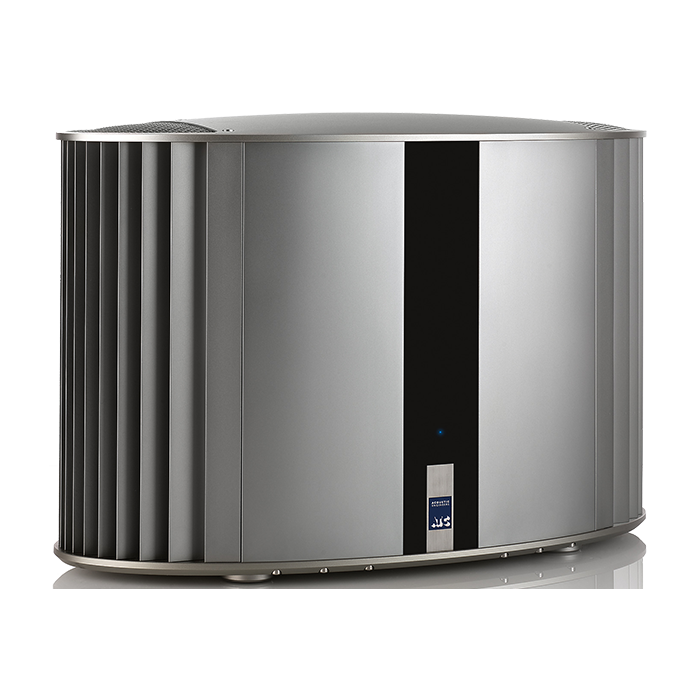

ATC P6 Power Amplifier
In stock
This item isn't available to buy online. Please contact us to order or for more information.
Usually ships within 3-4 weeks. Order now to reserve your place in the queue
Features
| XLR Inputs | No |
|---|---|
| Remote Control | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 6 Years |
| Product Type | Other |
Tech Specs
- HF out (stereo): 50W RMS into 6Ω
- MF out (stereo): 100W RMS into 16Ω
- LF out (stereo): 200W RMS into 8Ω
- Input Sensitivity: 1V RMS
- Input Impedance: 5k ohms
- Freq Response: 5Hz–200KHz (±0.1dB)
- Signal/Noise Ratio: >105dB
- TDH: Better than 90dB/0.0032%
- Power Req: Voltage: 110, 115, 230
- Freq: 50/60Hz (region dependent)
- Dimensions (HWD): 427 x 634 x 318mm
- Weight: 50.5kg (111.1lbs)
Description
ATC P6 Power Amplifier is a three-way dual mono six channel active amplifier module with active crossovers onboard supporting to drive passive 3-way ATC loudspeakers.
Six Channels
The six channels output a total of 700W and are configured as stereo pairs dedicating two channels driven by 200 watts for the low frequencies, two 100 watt channels for the mid frequencies and two 50 watt channels for high frequency reproduction.
A wide frequency response extends lows to 50kHz delivering an exceptional acoustic performance with great bass impact, stereo imaging and a spacious soundstage.
Construction
This dual-mono active amplifier is dedicated power solution for the EL150 loudspeakers and features a hand-crafted solid aluminium enclosure housing dual mono circuits and huge power supplies. This active amplifier can also be used with other ATC 3-way products by adding an ATC adaptor.
P6 has a high signal to noise ratio of more than 105 decibals which paired with the ultra low noise discrete design throughout grants a clear and detailed audio reproduction. The high quality craftmanship and engineering backed by a long 6 year warranty for extra piece of mind.
Key Features
- Dual-Mono 3-way design (6 channels)
- 2 x 350W total output power
- Ultra low noise discrete design throughout
- 3-way active crossovers with phase EQ
- Billet and extruded aluminium chassis
- 6 year warranty
