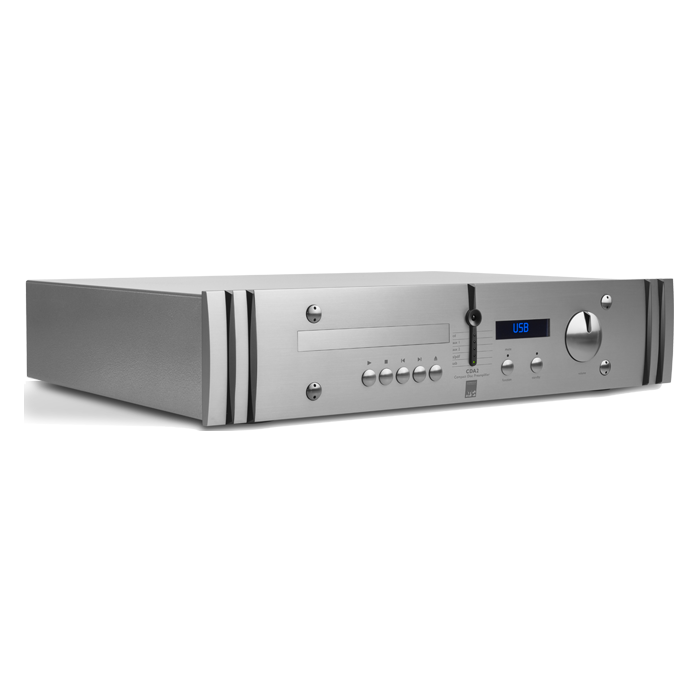

ATC CDA2 Mk2 CD Player and DAC Pre Amplifier
In stock
This item isn't available to buy online. Please contact us to order or for more information.
Usually ships within 3-4 weeks. Order now to reserve your place in the queue
Features
| Coaxial Digital Output | No |
|---|---|
| Optical Digital Output | No |
| Includes Pre Amp | No |
| Brand Color | None |
| Includes DAC Digital Inputs | No |
| USB Digital Output | No |
| AES/EBU Digital Output | No |
| Warranty The length of time your product is protected by warranty | 6 Years |
| Remote Control | No |
| Upsampling Feature | No |
| Product Type | Other |
Tech Specs
Preamplifier
- THD: 1/10kHz <0.0015%/0.003% (-90/96dB)
- Freq Response (20Hz–20kHz): +/- 0.2dB
- Freq Response (-3dB): <2Hz – >280kHz
- Distortion (1kHz): <0.0008% / 102dB
- Sensitivity (2V): Aux/3.5mm, 600/400mV
- Max Out: (Phono/XLR) 9.2/18.4V rms
- Overload Capacity: 13dB
- In/Out Impedance: 14k/10 Ohms
- SNR: (Wide/DIN/IEC) > 96/108/112dB
- Absolute Phase: (Phono/XLR) 0°/Pin 2 Hot
- Output XLR CMRR (100Hz – 10kHz): >60dB
Digital Inputs
- Distortion: <0.001%
- Sample Rates: 44.1 - 384kHz
- Optical/Coaxial: 16-24bit
- USB: 16bit, 24bit and 32bit
DSD
- Freq Response -1dB: < 10Hz – 50kHz
- Windows: DSD64, DSD128 and DSD256
- MacOS: DSD64 and DSD128
General
- Dimensions (HWD): 90 x 445 x 330mm
- Weight: 7kg / 15.4lbs
Description
ATC CDA2 Mk2 CD player and DAC preamplifier is an updated version of the original CDA2 released in 2013.
Enhancements
ATC has re-engineered the circuits for optimum performance from the new 32bit DAC. It is also more efficient than the original thanks to the improved the power supply.
Connectivity
Alongside its CD input, the CDA2 Mk2 has coaxial and optical inputs capable of 192kHz audio signal transfers located on the rear panel as well as a high-resolution USB that can handle PCM data up to 384kHz and DSD64, DSD128 and DSD256 natively.
Versatile
There are also twin RCA inputs and a 3.5mm input which has been equipped with high input sensitivity for better operation with smartphones, tablets and other portable players. For personal listening, there's a rear mounted 6.3mm jack to plug in your headphones.
Low Distortion
In order to lower noise and distortion across the frequency range, ATC also made changes to the input and output stages. The CDA2 MK2 incorporates a new CD transport with improved error-correction and lower mechanical noise.
Key Features
- All-discrete class-A pre-amplifier with balanced and unbalanced outputs
- Two analogue inputs via RCA/phonon and one via 3.5mm mini-jack
- High-performance CD Player and premium AKM 32-bit DAC
- USB digital input supporting up to 384kHz PCM data and native DSD256
- Headphone amplifier featuring discrete output stage
- Handmade in England.
