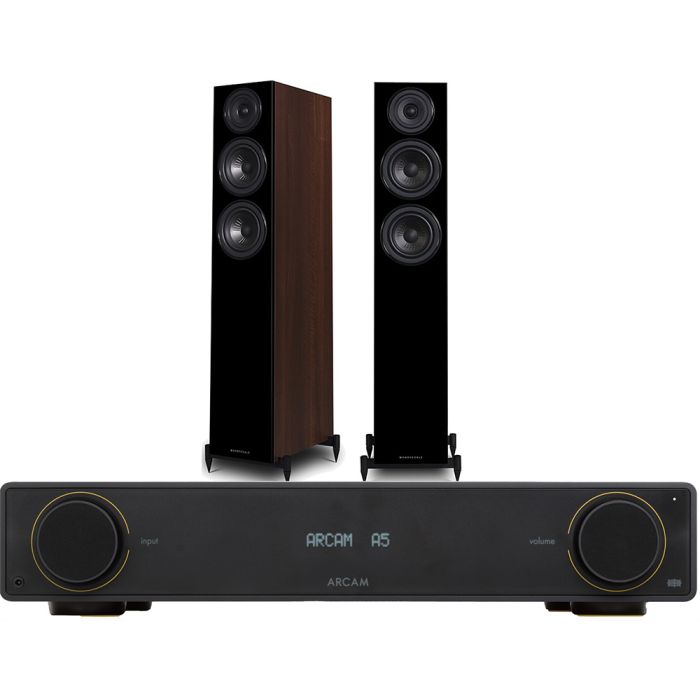

Arcam Radia A5+ Integrated Amplifier with Wharfedale Diamond 12.3 Speakers
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
Arcam Radia A5 Integrated Amplifier
- Continuous power output (0.5% THD), per channel
- 2 channels driven, 20Hz - 20kHz, 8Ω: 50W
- 2 channels driven, 1kHz, 4Ω: 75W
- Harmonic distortion, 80% power, 8Ω at 1kHz: 0.003%
- Analogue Inputs
- Number of inputs: 3 (RCA pairs)
- Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB
- Frequency response 20Hz—20kHz}: 0.2dB
- Phono (MM) Input
- Input impedance: 47kΩ + 100pFFrequency response (ref. RIAA curve) 20Hz—20kHz}: 1dB
- Digital Inputs
- Bluetooth Version: Bluetooth 5.2 with AptX™Adaptive technology and AAC
- Supported Sample Rates (kHz)
- Coaxial (RCA): 192, 176.4, 96, 88.2, 48, 44.1
- Optical (Toslink): 192, 176.4, 96, 88.2, 48, 44.1
- Bit depths (bit): 24, 16
- Frequency response (filter 1): 20Hz—20kHz, 0.2dB
- Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 109dB
- Headphone Output
- Maximum output level (RMS) into 32Ω/300Ω: 2.5V/5V
- Load range: 16Ω - 2kΩ
- General
- Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
- Power consumption (maximum): 350W
- Power consumption (standby): <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet): 431 x 344 x 83mm
- Weight (net): 8kg
- Weight (packed): 11kg
- Supplied accessories Mains lead(s), Remote control with 2 x AAA batteries, Quick Start Guide, Important Safety Instructions
Wharfedale Diamond 12.3 Speakers (Pair)
- Type: 2.5-way bass reflex
- Bass: 5" advanced PP Cone
- Mid: 5" advanced PP Cone
- Treble Driver: 1" Textile Dome
- Sensitivity (2.83V @1M): 87.5dB
- Recommended Amp Power: 30-150W
- Peak SPL: 102dB
- Nominal Impedance: 8Ω Compatible
- Minimum Impedance: 4.6Ω
- Freq Response: (+/-3dB) 45Hz ~20kHz
- Bass Extension (-6dB): 40Hz
- Crossover Freq: 2.2kHz
- Cabinet Volume: 26.6L
- Dimensions (HWD): 975 x 180 x 348mm
- Net Weight: 19.5kg/pcs
Description
Arcam Radia A5+ Integrated Amplifier
The Arcam Radia A5+ Integrated Amplifier is designed to bring people together through the shared enjoyment of music. Whether it is a family gathering, an intimate evening with friends, or a solo listening session, the A5+ offers the precision, warmth, and detail that Arcam has refined for nearly half a century.
View Full Product Details Here
Arcam Radia ST5 Hi-Fi Streamer
Wharfedale Diamond 12.3 Speakers (Pair)
Wharfedale Diamond 12.3 is the more compact floorstanding speaker in the series which retains the accuracy and musicality of the smaller standmount models. The refined presence and power make this an affordable option for an impressive stereo hi-fi system or at the front of a home cinema surround sound set up.
