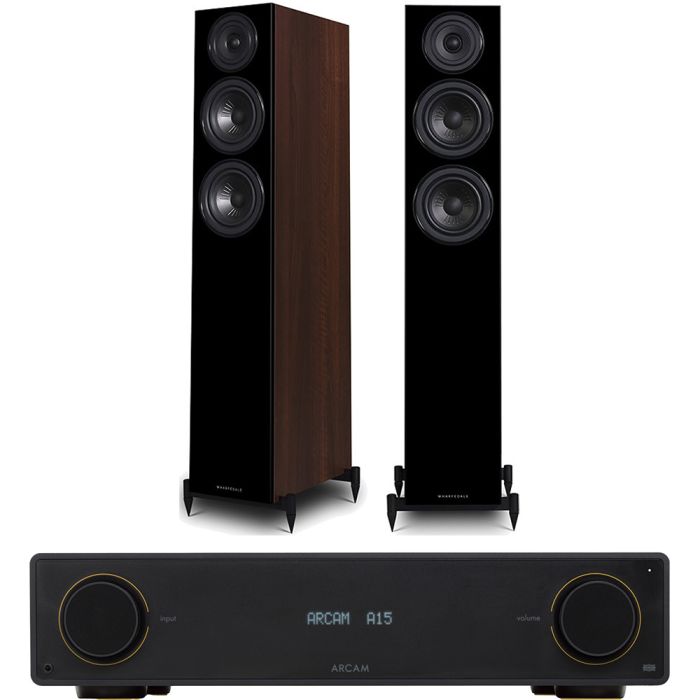

Arcam Radia A15+ Integrated Amplifier with Wharfedale Diamond 12.3 Speakers
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
Arcam Radia A15 Integrated Amplifier
- Continuous power output (0.5% THD), per channel
- 2 channels driven, 20Hz - 20kHz, 8Ω: 80W
- 2 channels driven, 1kHz, 4Ω: 120W
- Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
- Analogue Inputs
- Number of inputs: 3 (RCA pairs)
- Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB
- Frequency response: 20Hz—20kHz ± 0.2dB
- Phono (MM) Input
- Input impedance: 47kΩ + 100pF
- Frequency response (ref. RIAA curve): 20Hz—20kHz ± 1dB
- Digital Inputs
- Bluetooth Version: Bluetooth 5.2 with AptX™Adaptive technology and AAC
- Supported Sample Rates (kHz)
- Coaxial (RCA): 192, 176.4, 96, 88.2, 48, 44.1
- Optical (Toslink): 192, 176.4, 96, 88.2, 48, 44.1
- Bit depths (bit): 24, 16
- Frequency response (filter 1): 20Hz—20kHz ± 0.2dB
- Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 109dB
- Headphone Output
- Maximum output level (RMS) into 32Ω/300Ω: 2.5V/5Vrms
- Load range: 16Ω - 2kΩ
- General
- Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
- Power consumption (maximum): 500W
- Power consumption (standby): <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet): 431 x 344 x 98mm
- Weight (net): 10kg
- Weight (packed): 13kg
- Supplied accessories: Mains lead(s), Remote control with 2 x AAA batteries, Quick Start Guide, Important Safety Instructions
Wharfedale Diamond 12.3 Speakers (Pair)
- Type: 2.5-way bass reflex
- Bass: 5" advanced PP Cone
- Mid: 5" advanced PP Cone
- Treble Driver: 1" Textile Dome
- Sensitivity (2.83V @1M): 87.5dB
- Recommended Amp Power: 30-150W
- Peak SPL: 102dB
- Nominal Impedance: 8Ω Compatible
- Minimum Impedance: 4.6Ω
- Freq Response: (+/-3dB) 45Hz ~20kHz
- Bass Extension (-6dB): 40Hz
- Crossover Freq: 2.2kHz
- Cabinet Volume: 26.6L
- Dimensions (HWD): 975 x 180 x 348mm
- Net Weight: 19.5kg/pcs
Description
An expertly matched hi-fi headphone package combining the Arcam Radia A15 Integrated Amplifier and Arcam Radia A15 Integrated Amplifier.
Arcam Radia A15+ Integrated Amplifier
The Arcam Radia A15+ Integrated Amplifier is built for those who want exceptional power, clarity, and musicality in their home audio system. Designed to deliver impressive sound with tower speakers, larger rooms, and higher listening volumes, the A15+ is a true powerhouse. It continues Arcam’s nearly 50-year legacy of amplification expertise, dating back to the release of the iconic A&R Cambridge A60 amplifier in 1976.
View Full Product Details Here
Wharfedale Diamond 12.3 Speakers (Pair)
Wharfedale Diamond 12.3 is the more compact floorstanding speaker in the series which retains the accuracy and musicality of the smaller standmount models. The refined presence and power make this an affordable option for an impressive stereo hi-fi system or at the front of a home cinema surround sound set up.
