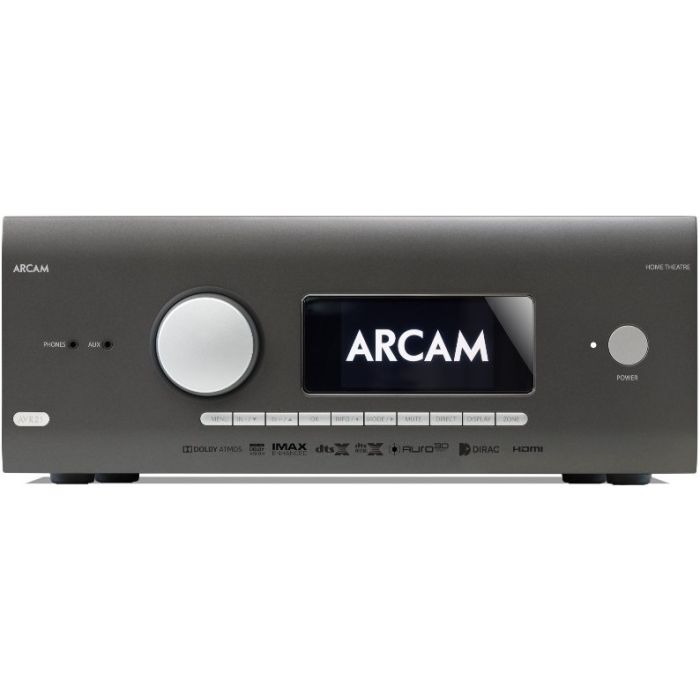

Arcam AVR21 AV Receiver
In stock
Available - Usually ships within 2-3 days
Features
| Ethernet Input | No |
|---|---|
| Spotify Support | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 2 years standard (5 years on registration) |
| Product Type | Other |
Tech Specs
- Continuous power output, per channel, 8Ω/4Ω
...2 channels driven, 20Hz - 20kHz, <0.02% THD 110W/175W
...2 channels driven, 1kHz, 0.2% THD 125W/190W
...7 channels driven, 1kHz, 0.2% THD 90W/110W
...Residual noise & hum (A-wtd) <0.15mV
- Stereo Line Inputs
...Maximum input 4.5V rms
...Nominal sensitivity 1V, 2V, 4V (user adjustable)
...Input impedance 47kΩ
...Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
...Frequency response 20Hz—20kHz ± 0.2dB
- Preamplifier Outputs
...Nominal output level 1V RMS (max. 5V RMS)
...Output impedance 560Ω
...THD+N (20Hz—20kHz) –100dB
- Headphone Output
...Maximum output level into 32Ω 5Vrms
...Output impedance <100Ω
- General
...Mains voltage 110–120V or 220–240V, 50–60Hz
...Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
...Power consumption (idle, typical) 100W (Thermal dissipation approx. 350 BTU/hour)
...Power consumption (standby) <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
- Weight (net) 16.6kg
- Weight (packed) 19.9kg
Supplied accessories
- Mains lead
- Remote control with 2 x AAA batteries
- Quick Start Guide (full manual online)
- DAB/FM aerial
- 3 x Wi-Fi/Bluetooth antennas
- Calibration microphone
- USB cable
Description
The Arcam AVR21 AV Receiver is part of Arcam’s HDA range, a line that combines the company’s extensive experience with the latest in audio and visual technology. As one of the UK’s most respected audio brands, Arcam has used its legacy of craftsmanship and precision to create a receiver that offers the best performance yet.
The AVR21 is designed to deliver years of listening pleasure, using top-quality components and advanced engineering practices. This receiver brings a powerful combination of high-fidelity sound and immersive audio, ensuring that every movie, music track, and sound effect is delivered with exceptional realism.
Immersive Audio Experience with 16 Channels
At the core of the Arcam AVR21 is its ability to decode 16 channels of immersive audio, making it perfect for creating a truly cinematic experience in your home theater. The receiver supports Dolby Atmos, DTS:X, and Auro-3D, bringing the theater experience right into your living room.
With a focus on both power and clarity, the AVR21 utilizes a robust toroidal transformer for low-noise, real-world power, ensuring that the sound is delivered with unparalleled precision. The seven channels of high-power Class AB amplification are based on Arcam’s stereo amplifiers, guaranteeing a level of musicality that is unmatched by other AV receivers.
Advanced Features for Enhanced Performance
The Arcam AVR21 is engineered to deliver superior audio performance through a variety of advanced features. Dirac Live® room optimization is included, offering automatic adjustments based on your room's acoustics to ensure optimal sound quality.
Additionally, the AVR21 is compatible with integrated streaming services such as Apple® Airplay2, Google Chromecast®, Bluetooth aptX®HD, Spotify Connect, Tidal Connect, and UPnP through the MusicLife app, giving you easy access to all your favorite music.
For further bass control, Dirac Live® Bass Control can be added at an extra cost, improving bass distribution throughout the room for a truly customized audio experience.
High-Quality Connectivity and Versatility
The Arcam AVR21 is designed with versatility and connectivity in mind. It features seven HDMI inputs and three HDMI outputs, including support for Zone 2 and eARC compatibility. All HDMI inputs support 8K at 60Hz and 4K at 120Hz, ensuring that your video content is as stunning as your audio. Additionally, the AVR21 supports Dolby Vision, HDR10+, HDR10, and HLG for the best video quality.
The receiver is also equipped with dual ESS 9026PRO audiophile DACs, offering exceptional sound quality, while built-in Google Chromecast® and Apple® Airplay2 ensure seamless streaming. Whether you’re controlling it via Wi-Fi, Ethernet, RS232, or IR, the AVR21 fits seamlessly into any home entertainment system.
Key Features
- 16 Channels of Dolby Atmos, DTS:X & AURO-3D decoding
- 7 HDMI inputs, 3 HDMI outputs inc Zone 2, eARC compatible
- HDMI 2.1 with HDCP2.3
- All inputs support 8K@60fps and 4K@120fps
- Supports Dolby Vision, HDR10+, HDR10 and HLG
- Includes Dirac Live® room correction
- Ready for Dirac Live Bass Control*
- Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
- 7 Channels of high power Class AB amplification
- Wi-Fi / Ethernet, RS232 and IR control
- Google Chromecast® built-in for streaming audio
- Apple® Airplay2
- Bluetooth aptX®HD
- Free MusicLife iOS and Android UPnP app
- Supports MQA
- Roon Ready
What does AVR21 include that AVR11 doesn't?
- 9.1.6 Decoding
- Toroidal Transformer
- Higher Power 2 CH = 2 x 125 Watts
- Higher Power 7 CH = 7 x 90 Watts
- 3 x HDMI Outputs
