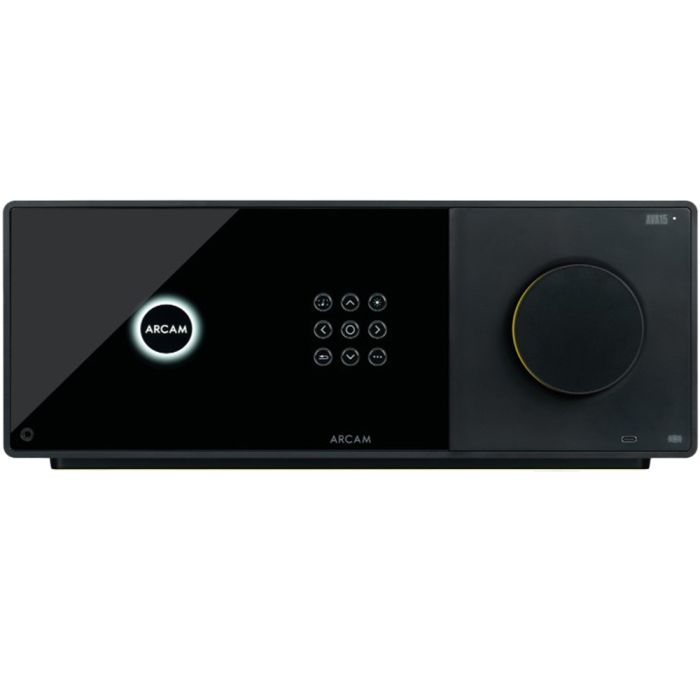

Arcam AVA15 AV Receiver
In stock
Stock due Late June. Order now for first delivery. Or contact us to leave a deposit.
Features
| Ethernet Input | No |
|---|---|
| Spotify Support | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 2 years standard (5 years on registration) |
| Product Type | Other |
Tech Specs
Decoding / encoding
- Maximum channel count: 12
- Reassignable channels: Front, surround back, height channels
- Dolby formats: Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
- DTS formats: DTS:X, DTS-HD Master Audio, DTS Neural:X, DTS Virtual:X, MPEG-H
HDMI
- Inputs / outputs: 7 / 2
- HDMI / HDCP versions: 2.1a / 2.3
- Resolution support: Up to 8K / 60 Hz or 4K / 120 Hz
- Supported dynamic range profiles: HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
- Supported HDMI features: Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC / ARC (Zone 1, Output 1)
- On screen display: Supported
Streaming
- Control apps: ARCAM Radia Control
- Streaming services: Spotify Connect, TIDAL Connect, Qobuz Connect, Roon Ready
- Wireless services: Apple AirPlay, Google Cast
- Supported services: Internet radio, podcasts, UPnP
- Supported hi-res formats: FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA
- Supported bit depths: 16-bit, 24-bit
- Supported sample rates: Up to 192 kHz
- Gapless playback: Supported
- Frequency response: 20 Hz – 20 kHz ±0.05 dB
Digital inputs
- Coaxial inputs: 2
- Optical (Toslink) inputs: 2
- Supported sample rates (coaxial): 192, 176.4, 96, 88.2, 48, 44.1 kHz
- Supported sample rates (optical): 96, 88.2, 48, 44.1 kHz
- Supported bit depths: 16-bit, 24-bit
- Frequency response: 20 Hz – 20 kHz ±0.2 dB
- Signal-to-noise ratio: 100 dB (A-weighted, ref. 50 W, 0 dBFS)
Analogue inputs
- Number of inputs: 3 (RCA pairs)
- Signal-to-noise ratio: 100 dB (A-weighted, ref. 50 W, 1 V input)
- Frequency response: 20 Hz – 20 kHz ±0.2 dB
Preamplifier outputs
- Number of outputs (XLR / RCA): 0 / 12
- Single-ended output level: 2 V RMS per channel
- THD+N (20 Hz – 20 kHz): –100 dB
Amplification
- Amplifier channels: 9
- Amplifier class: Class D
- Continuous power output (0.5% THD):
- 8 ohms, 20 Hz – 20 kHz, 2 channels driven: 100 W
- 4 ohms, 1 kHz, 2 channels driven: 150 W
- 8 ohms, 20 Hz – 20 kHz, 9 channels driven: 75 W
- 4 ohms, 1 kHz, 9 channels driven: 90 W
- Harmonic distortion: 0.01% (80% power, 8 ohms, 1 kHz)
General
- Mains voltage: 100–120 V or 220–240 V, 50–60 Hz
- Maximum power consumption: 900 W
- Maximum thermal dissipation: 3070 BTU/hour
- Idle power consumption: 59 W
- Idle thermal dissipation: 200 BTU/hour
- Standby power consumption (default / low power): 2 W / 0.3 W
- Dimensions (W × D × H, including terminals and feet): 432 × 407.4 × 170 mm
- Net weight: 10 kg
- Packed weight: 15.7 kg
Supplied accessories
- Region-specific power cord(s)
- Rear panel cowl
- Remote control with 2 × AAA batteries
- Measurement microphone
- 5 m USB cable
- Quick start guide
- Important safety instructions
Wireless specifications
- Bluetooth version: 5.4
- Bluetooth profiles: A2DP sink/source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP
- Bluetooth transmitter frequency range: 2.402 MHz – 2.480 MHz
- Bluetooth transmitter power: < 10.73 dBm
- Wi-Fi standard: IEEE 802.11 a/b/g/n/ac (2.4 GHz / 5 GHz)
- 2.4 GHz Wi-Fi frequency range: 2.400 GHz – 2.4835 GHz
- 2.4 GHz Wi-Fi transmitter power: < 17.4 dBm
- 5 GHz Wi-Fi frequency ranges: 5.15–5.35 GHz, 5.47–5.725 GHz, 5.725–5.875 GHz
- 5 GHz Wi-Fi transmitter power: < 19.26 dBm
Description
The Arcam AVA15 AV Receiver is designed as the ideal starting point for experiencing genuine high-fidelity immersive home cinema sound. Drawing on more than 30 years of Arcam expertise in surround sound engineering, the AVA15 delivers breathtaking clarity, scale, and precision for both music and movies.
Every detail is presented with control and authority, placing you firmly at the center of the performance. Whether you are watching the latest blockbuster or listening to a concert recording, the AVA15 reproduces sound with depth, realism, and emotional impact.
Engineered in Cambridge, UK, this receiver reflects Arcam’s long standing commitment to musical accuracy, ensuring that cinematic excitement and audiophile values coexist in perfect balance.
Powerful Nine-Channel Amplification
At the heart of the Arcam AVA15 AV Receiver is a robust nine-channel Class D amplification stage, delivering 100 watts per channel into 8 ohms. This high-efficiency design provides ample power while maintaining excellent control and low distortion, even during demanding scenes.
The AVA15 comfortably supports popular speaker layouts such as 7.1.2 or 5.1.4, allowing immersive height effects without the need for external amplification. There is also flexibility for future expansion, including the addition of multiple subwoofers or alternative speaker configurations.
The result is a dynamic and confident sound that remains composed at all listening levels, delivering punchy bass, clear dialogue, and effortless surround effects across your entire system.
Immersive Audio and Room Optimization
The AVA15 supports the latest immersive audio formats, including Dolby Atmos and DTS:X, enabling sound to move naturally around and above the listener. These technologies create a three-dimensional soundfield that brings films, games, and music to life with exceptional realism.
To ensure the best possible performance in real-world rooms, the AVA15 includes Dirac Live room correction. This advanced calibration system analyzes your listening environment and corrects frequency and timing issues for a more accurate and balanced sound.
Users can further upgrade to Dirac Live Bass Control and Dirac Live Active Room Treatment, providing deeper integration of subwoofers and improved consistency across seating positions.
Modern Connectivity and Smart Control
Designed for modern lifestyles, the Arcam AVA15 AV Receiver offers extensive connectivity and intuitive control options. Multiple HDMI 2.1a inputs support 8K video pass-through, with eARC enabling high-quality audio from compatible televisions.
Built-in streaming support includes Apple AirPlay, Google Cast, Spotify Connect, Tidal Connect, and Qobuz Connect, allowing direct access to lossless and high resolution music services. Bluetooth with Snapdragon Sound and Auracast provides high-quality wireless playback and flexible sharing options.
Setup and daily operation are made simple through the large 6.5-inch color display, clear on-screen menus, and the new Arcam Radia app for control across iOS, Android, and Windows devices.
Design, Usability, and Sustainability
The AVA15 follows the distinctive Radia design language, featuring a deep black finish accented with subtle yellow highlights and a softly illuminated volume control. The large front panel display provides clear visibility of source information and playback status from across the room.
A Bluetooth remote allows reliable control even when the unit is hidden from view. Arcam has also emphasised sustainability, using plastic-free packaging made from natural materials for easy recycling.
Every aspect of the AVA15 has been designed to combine visual elegance with practical usability, ensuring it integrates seamlessly into both dedicated home cinema rooms and stylish living spaces without compromising on performance or convenience.
Positioning Within the Radia AV Range
Within Arcam’s new Radia AV lineup, the AVA15 AV Receiver serves as the most accessible entry point, succeeding the earlier AVR11. It delivers core Radia performance and features at the most approachable level in the range, making it ideal for users building a high-quality immersive system without unnecessary complexity.
Above it sits the AVA25, which adds additional processing channels, a third HDMI output, and expanded format support, while the flagship AVA35 introduces advanced DAC technology and Class G amplification.
The AVA15 focuses on delivering outstanding sound quality, modern connectivity, and reliable immersive performance, making it the perfect foundation for serious home cinema enthusiasts beginning their Radia journey.
