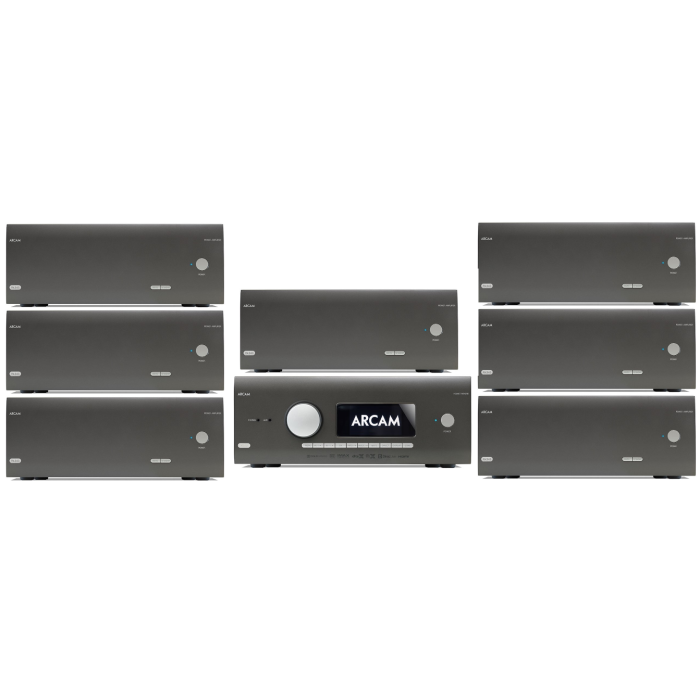

Arcam AV41 + Seven Bridged PA240 7.1 or 5.1.2 Channel AV Package
In stock
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | 5 Years |
|---|---|
| Brand Color | None |
Tech Specs
Arcam AV41
- Stereo Line Inputs
...Maximum input 4.5V rms
...Nominal sensitivity 1V, 2V, 4V (user adjustable)
...Input impedance 47kΩ
...Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
...Frequency response 20Hz—20kHz ± 0.2dB
- Preamplifier Outputs
...Balanced (XLR) nominal output level per channel 2V RMS (max. 10V RMS)
...Single-ended (RCA) nominal output level per channel 1V RMS (max. 5V RMS)
...Output impedance 560Ω
...THD+N (20Hz—20kHz) –100dB
- Headphone Output
...Maximum output level into 32Ω 5Vrms
...Output impedance <100Ω
- General
...Mains voltage 110–120V or 220–240V, 50–60Hz
...Power consumption (maximum) 50W (Thermal dissipation approx. 170 BTU/hour)
...Power consumption (idle, typical) 40W (Thermal dissipation approx. 170 BTU/hour)
...Power consumption (standby) <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
- Weight (net) 10.6kg
- Weight (packed) 13.9kg
Arcam PA240
- Continuous power output
- 2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz 380W/225W
- 1 channel driven, 8Ω bridged mode, 20-20kHz 790W
- Harmonic distortion: 80% power, 8Ω at 1kHz 0.001%
- Inputs
- RCA Type: XLR Type
- Input sensitivity: 200W / 8Ω 1.15V RMS 2.3V RMS
- Signal/Noise ratio: (A-wtd) 50W / 8Ω 110dB
- Input impedance: 10kΩ
- Frequency response: 20 - 20kHz +/-0.05dB
- Mains voltage: 110–120V or 220–240V, 50–60Hz
- Power consumption: (maximum) 1.5kW
- Power consumption: (idle, typical) 90W
- Weight: (net) 18kg
Description
An excellent 7.1 channel setup with all channels driven by the powerful PA240 which are each set to bridged mode in this package so each amp drives 1 rather than 2 channels ensuring even greater power.
This package consists of two PA240 (driving front channels), one PA240 (driving the centre speaker), two PA240 (driving rear channels) and two PA240 (driving second set of rear channels or Atmos speakers).
More Info
For more info on our AV processor, please see our main Arcam AV-41 page.
For more info on our power amp, please see our main Arcam PA720 page.
Please Note
We can tailor this package from 7.1 to 7.1.2 or to 9.1 or to 9.1.2 or to your specific requirements. Please contact us to discuss your options.
