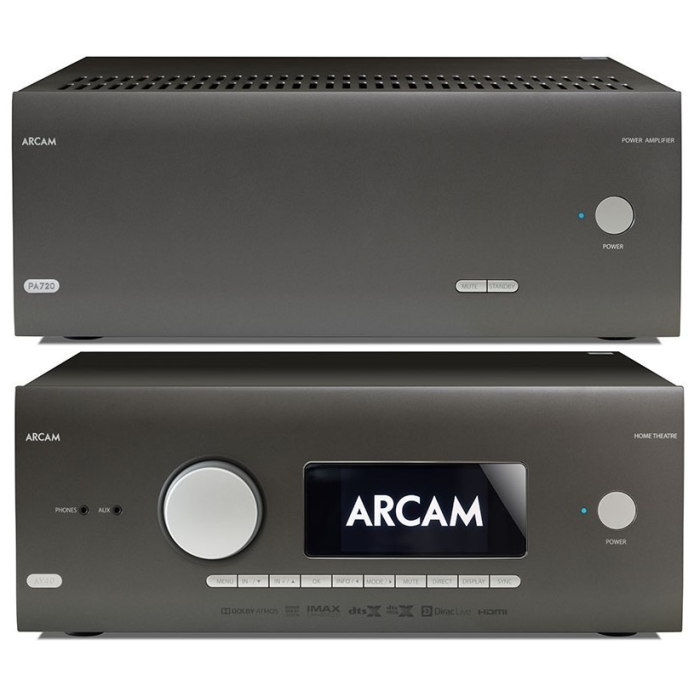

Arcam AV41 + PA720 7.1 or 5.1.2 Channel AV Package

Arcam AV41

- Stereo Line Inputs
...Maximum input 4.5V rms
...Nominal sensitivity 1V, 2V, 4V (user adjustable)
...Input impedance 47kΩ
...Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
...Frequency response 20Hz—20kHz ± 0.2dB
- Preamplifier Outputs
...Balanced (XLR) nominal output level per channel 2V RMS (max. 10V RMS)
...Single-ended (RCA) nominal output level per channel 1V RMS (max. 5V RMS)
...Output impedance 560Ω
...THD+N (20Hz—20kHz) –100dB
- Headphone Output
...Maximum output level into 32Ω 5Vrms
...Output impedance <100Ω
- General
...Mains voltage 110–120V or 220–240V, 50–60Hz
...Power consumption (maximum) 50W (Thermal dissipation approx. 170 BTU/hour)
...Power consumption (idle, typical) 40W (Thermal dissipation approx. 170 BTU/hour)
...Power consumption (standby) <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
- Weight (net) 10.6kg
- Weight (packed) 13.9kg

Arcam PA720

- Continuous power output
- Seven channels driven, 4O / 8O, 20Hz – 20kHz 140W / 100W
- Five channels driven, 4O / 8O, 1kHz 175W / 110W
- Two channels driven, 4O / 8O, 1kHz 225W / 140W
- Harmonic distortion, 80% power, 8O at 1kHz 0.002%
- Inputs
- RCA Type XLR Type
- Input sensitivity 50W / 8O 800mV RMS 1.6V RMS
- Signal/Noise ratio (A-wtd) 50W / 8O 105dB
- Input impedance 10kO
- Frequency response 20 - 20kHz +/-0.05dB
- Mains voltage 110–120V or 220–240V, 50–60Hz
- Power consumption (maximum) 1.5kW
- Power consumption (idle, typical) 90W
- Power consumption (standby) <0.5W
- Dimensions W x H x D 433 x 425 x 177mm
- Weight (net) 18kg
