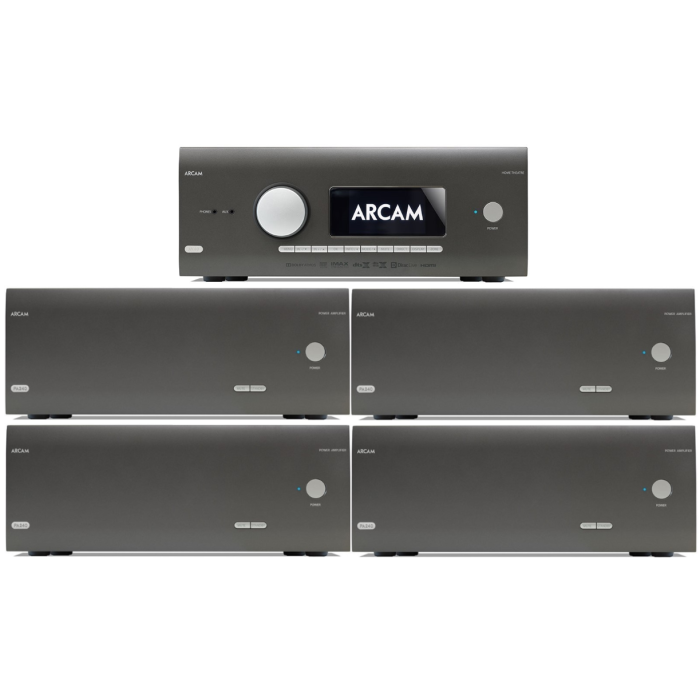

Arcam AV41 + Four PA240 7.1 or 5.1.2 Channel AV Package

Arcam AV41

- Stereo Line Inputs
...Maximum input 4.5V rms
...Nominal sensitivity 1V, 2V, 4V (user adjustable)
...Input impedance 47kΩ
...Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
...Frequency response 20Hz—20kHz ± 0.2dB
- Preamplifier Outputs
...Balanced (XLR) nominal output level per channel 2V RMS (max. 10V RMS)
...Single-ended (RCA) nominal output level per channel 1V RMS (max. 5V RMS)
...Output impedance 560Ω
...THD+N (20Hz—20kHz) –100dB
- Headphone Output
...Maximum output level into 32Ω 5Vrms
...Output impedance <100Ω
- General
...Mains voltage 110–120V or 220–240V, 50–60Hz
...Power consumption (maximum) 50W (Thermal dissipation approx. 170 BTU/hour)
...Power consumption (idle, typical) 40W (Thermal dissipation approx. 170 BTU/hour)
...Power consumption (standby) <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
- Weight (net) 10.6kg
- Weight (packed) 13.9kg

Arcam PA240

- Continuous power output
- 2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz 380W/225W
- 1 channel driven, 8Ω bridged mode, 20-20kHz 790W
- Harmonic distortion: 80% power, 8Ω at 1kHz 0.001%
- Inputs
- RCA Type: XLR Type
- Input sensitivity: 200W / 8Ω 1.15V RMS 2.3V RMS
- Signal/Noise ratio: (A-wtd) 50W / 8Ω 110dB
- Input impedance: 10kΩ
- Frequency response: 20 - 20kHz +/-0.05dB
- Mains voltage: 110–120V or 220–240V, 50–60Hz
- Power consumption: (maximum) 1.5kW
- Power consumption: (idle, typical) 90W
- Weight: (net) 18kg
