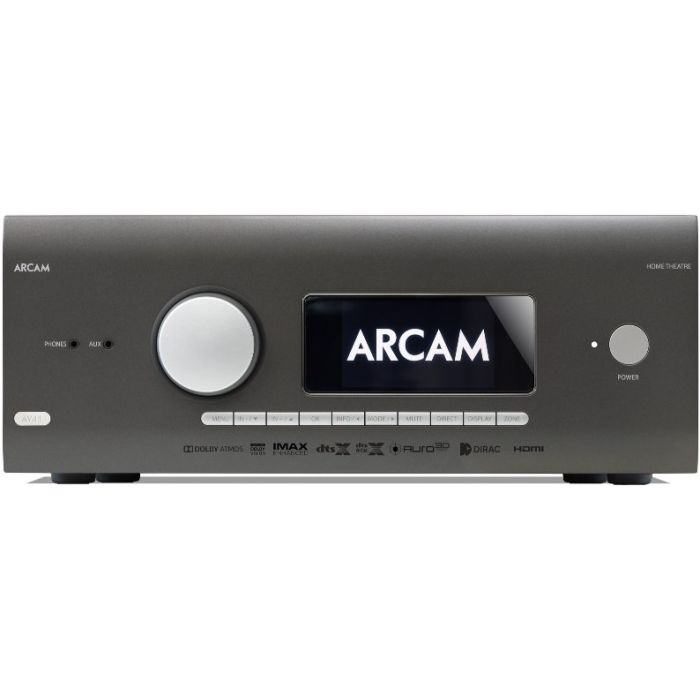

Arcam AV41 AV Processor
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 years standard (5 years on registration) |
| Product Type | Other |
Tech Specs
- Stereo Line Inputs
...Maximum input 4.5V rms
...Nominal sensitivity 1V, 2V, 4V (user adjustable)
...Input impedance 47kΩ
...Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
...Frequency response 20Hz—20kHz ± 0.2dB
- Preamplifier Outputs
...Balanced (XLR) nominal output level per channel 2V RMS (max. 10V RMS)
...Single-ended (RCA) nominal output level per channel 1V RMS (max. 5V RMS)
...Output impedance 560Ω
...THD+N (20Hz—20kHz) –100dB
- Headphone Output
...Maximum output level into 32Ω 5Vrms
...Output impedance <100Ω
- General
...Mains voltage 110–120V or 220–240V, 50–60Hz
...Power consumption (maximum) 50W (Thermal dissipation approx. 170 BTU/hour)
...Power consumption (idle, typical) 40W (Thermal dissipation approx. 170 BTU/hour)
...Power consumption (standby) <0.5W
- Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
- Weight (net) 10.6kg
- Weight (packed) 13.9kg
Supplied Accessories
- Mains lead
- Remote control with 2 x AAA batteries
- Quick Start Guide (full manual online)
- DAB/FM aerial
- 3 x Wi-Fi/Bluetooth antennas
- Calibration microphone
- USB cable
Description
The Arcam AV41 AV Processor stands as the pinnacle of Arcam's commitment to excellence in audio and visual performance. Drawing from decades of experience as one of the UK's most respected audio brands, the AV41 offers an unmatched home cinema experience with precision-engineered components and meticulous craftsmanship.
Designed to provide years of listening pleasure, this high-performance processor excels in delivering rich musicality and immersive sound. The AV41's advanced technology, including 16-channel immersive audio decoding for Dolby Atmos, DTS:X, and Auro-3D, guarantees a cinematic experience that rivals professional setups, all while maintaining Arcam's reputation for superior sound quality.
This processor is engineered to seamlessly integrate with Arcam power amplifiers, enhancing your home theater's performance and realism.
Immersive Audio and Exceptional Performance
At the heart of the Arcam AV41 AV Processor is its ability to decode the latest immersive audio formats, including Dolby Atmos, DTS:X, and Auro-3D, providing a full 16 channels of sound. Whether you're watching movies or listening to music, the AV41 transports you to another world with stunning realism.
The processor features XLR balanced outputs for all 16 channels, ensuring the highest quality analogue connection to your power amplifiers. This attention to detail in both sound reproduction and signal transmission means the AV41 can deliver exceptional clarity and depth, ensuring a truly engaging experience.
It also boasts a range of connectivity options including HDMI 2.1 with HDCP 2.3 support, ensuring compatibility with the latest 8K and 4K video formats.
Integrated Streaming and Room Optimization
The Arcam AV41 offers more than just superior audio performance—it includes integrated streaming capabilities for a versatile and convenient user experience. With support for Apple® Airplay2, Google Chromecast®, Bluetooth aptX®HD, and services like Spotify Connect, Tidal Connect, and UPnP through the MusicLife app, you can stream your favorite content with ease.
Additionally, the AV41 comes equipped with Dirac Live® room optimization, ensuring your home theater sounds its best regardless of room acoustics. This advanced room correction system adjusts the processor’s output for optimal performance.
For even greater bass control, Dirac Live® Bass Control is available as an optional upgrade, enabling precise bass management across your system to deliver a more balanced and refined soundstage.
Superior Build and Versatility
The Arcam AV41 AV Processor is not only built to perform; it’s built to last. With dual ESS 9026PRO audiophile DACs and ESS reference voltage regulators, it delivers high-fidelity audio with exceptional detail and dynamics.
The processor’s 16 transformerless balanced XLR output channels ensure maximum performance, while its sleek, modern design in Piano Gloss White, Piano Gloss Black, and American Walnut wood veneer finishes allows it to seamlessly blend into any home theater setup.
Additionally, the AV41 is compatible with a wide range of Arcam power amplifiers, including the PA720, PA240, and PA410, making it the perfect centerpiece of your audio system. With Wi-Fi/Ethernet, RS232, and IR control options, this processor ensures smooth integration into any home entertainment environment.
