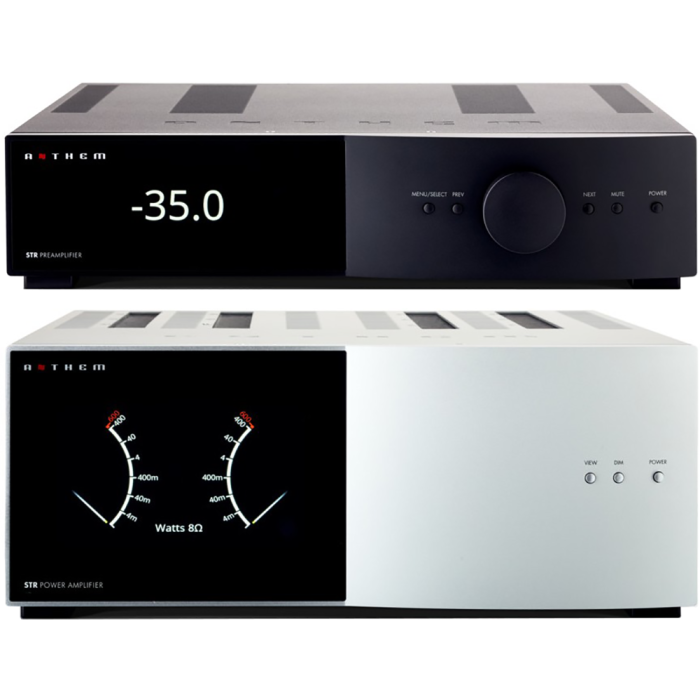

Anthem STR Pre and Power Amplifier Package
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
Anthem STR Power Amplifier
Amplifier
- Power Out: 8/4/2Ω, (400/600/800W)
- THD (400W) 0.0007%/0.004% (1/20kHz)
- IMD (300W): ITU-R (19+20kHz) 0.0006%
- SMPTE: (60+7k Hz) 0.0016%
- SNR (IEC-A, ref 400W): 121dB
- Freq Response: (20Hz - 20kHz) ±0.1dB
- Bandwidth (-3dB @400W, 8Ω): 91kHz
- Slew Rate: 30 V/μs
- Damping Factor: (20Hz - 1kHz) 360
- Ch Separation: 101/98dB (100/10k Hz)
- In Impedance: 10/15kΩ (RCA/XLR)
- In Sensitivity (400W, 8Ω): 2.1Vrms
- Voltage Gain: 29dB
General
- Power Required: 220-240/120V (50/60Hz)
- Standby Consumption: 310mW
- Idle Consumption: 65W
- Typical Playback: 150W - 300W
- High Playback: 600W - 1100W
- Dimensions (HWD): 172 x 432 x 470mm
- Weight: 27.3kg (60lbs)
Anthem STR Pre Amplifier
Phono Preamp
- Input Impedance: 100Ω, 47kΩ (MC/MM)
- Input Capacitance: 270pF (MM)
- RIAA Response: ±0.1dB (20Hz-kHz)
- Gain (1kHz, 0dB): 61/41dB (MC/MM)
DSP Mode
- Max (20Hz-kHz): 3.6/38mV (MC/MM)
- THD+N (20Hz-kHz): 0.015%/0.003% (MC/MM)
- THD (20Hz-kHz): 0.001% (MC/MM)
- SNR: (2V, IEC-A): 86/103dB (MC/MM)
Direct Mode
- Max (20Hz-kHz): 11.8/129mV (MC/MM)
- THD+N (20Hz-kHz): 0.008%/0.002% (MC/MM)
- THD (20Hz-kHz): 0.001% (MC/MM)
- SNR: (1kHz, IEC-A): 90/110dB (MC/MM)
Freq Response
- DIG: (44.1/192) 10-50kHz (0/-0.5dB)
- Analogue DSP: 10Hz-40kHz (+0, -0.2dB)
- Analogue Direct: 10Hz-80kHz (+0,-0.1dB)
Preamp
- Max Out (<0.1%): 3.3/6.6Vrms (RCA/XLR)
- XLR: (1/2/3) Ground, Normal, Inverted
- THD DSP: 0.0006% (Dig), 0.0017% (Anlg)
- THD Analogue Direct: 2Vrms, 0.0016%
- SNR DSP: 113/108dB (digital/Analog)
- SNR Analogue Direct: 120 dB
General
- Power: AC 108 - 264V (50/60Hz)
- Standby Power: 0.38/0.45W (120/240v)
- Typical Use: 10W
- Dimensions (HWD): 93 x 432 x 377mm
- Weight: 7.6kg (16.8lbs)
Description
The Anthem STR Pre and Power Amplifier Package combines two products from the STR Range from Anthem. One of each STR Pre Amp and STR Power Amplifier with a mix and match assortment of colours of black and white
STR Range
The stereo preamplifier in Anthem's premium STR range with leading DAC, ARC and customisable bass for mono or stereo sub outs alongside the power amplifier of Anthem's new STR range, it has a dual mono design, massive toroidal transformers max 800W power and 16 bipolar output devices per channel.
Anthem STR Power Amplifier
Anthem STR Stereo Power Amplifier is at the centre of a championing two-channel system delivering huge amounts of power, in a very stylish package. The Anthem STR is an integral part of Anthem's premium STR Series, class-leaders in control and power.
Anthem STR Pre Amplifier
Anthem STR Preamplifier is a new type of audio component that gives you better control and greater refinements including more connectivity and further advanced technology in a one-box simple to use component.
