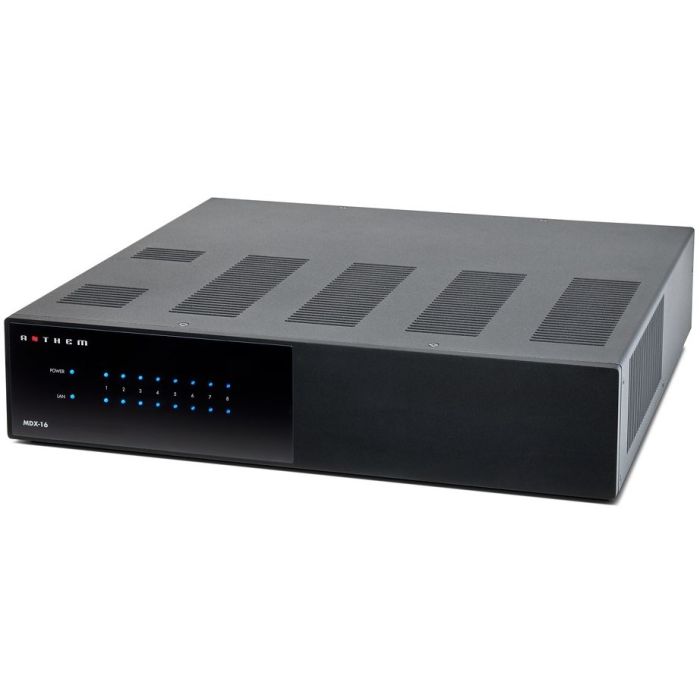

Anthem MDX 16 Audio Distribution for Custom Install
In stock
This item isn't available to buy online. Please contact us to order or for more information.
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
- Channels/Zones: 16 channels / Up to 8 zones
- Power Output RMS per Channel (8 Ohm): 60 Watts
- Power Output RMS per Channel (4 Ohm): 120 Watts
- High Output Mode (Bridged) RMS per Channel (8 Ohm): 200 Watts
- Frequency Response: 10Hz – 20kHz ±0.5dB
- Digital-to-Analog Converter: PCM up to 24 bit/192 kHz
- Inputs (analog): 8x RCA pairs (left/right)
- Inputs (digital S/PDIF): 2x RCA coaxial; 2x optical (Toslink)
- Inputs (network): RJ-45 10Base-T/100 Base-TX ethernet port
- Inputs (trigger): 1x 3.5mm (5 – 24V DC/AC)
- Inputs (other): Micro-USB (for ARC); RS-232
- Outputs (speaker level): 8x removable Phoenix style (left/right) accommodate wire up to 12AWG
- Output (analog, passthrough): 2x RCA pair (left/right)
- Outputs (subwoofer): 8x RCA (with bass management and room correction)
- Outputs (digital matrix): 1x optical (Toslink)
- Outputs (other): 1x 3.5mm 12V trigger
- Audio In-Out Matrix: Yes
- Advanced Load Monitoring: Yes
- Controls (via web-based UI):
- Bass level: ±6dB for each zone;
- Trebel level: ±6dB for each zone;
- Level balancing: ±10dB for each zone
- Controls (back panel)
- Power Mode: Auto, Trigger,
- External Command;
- Network Reset (pinhole);
- Factory Reset (pinhole);
- Main Power: On /Off
- Room Correction: Anthem Room Correction (ARC®)
- Microphone (for room correction): Included dual input microphone (3.5mm and mini-USB)
- Setup: Web-based user interface
- IP Control (via IP or RS-232): Drivers for Control4, Crestron, Savant, URC, Elan
- AC Voltage: 120V~50/60Hz
- Rack Space (feet removed): 2U
- Dimensions: (H x W x D, with feet) 3.5” x 17” x 16.4” (8.9 x 43.2 x 41.7 cm)
- Weight: 24 lbs. (10.8kg)
Description
Anthem MDX 16 audio distribution for custom install is part of the MDX series, the first line of multi-zone amplifiers from Anthem. Featuring room correction, subwoofer outputs for every zone and ARC Genesis technology in each zone, this distribution system allows the same high tech home cinema audio in every room in the house.
Advanced technology
As the first line of distribution systems from the brand, Anthem's MDX series was born out of more than 2 years of expert development. Anthem Room Correction technology is a cutting edgy technology developed for the MDX models, alongside a web based setup allowing for control of the MDX 16 with any device using the adaptive user interface. Alongside this, the MDX series is compatible with home automation systems with IP/RS-232 connection.
Digital inputs, digital switching
Advanced Load Monitoring offers support to the high efficiency class-D amplification for a fast and reliable performance under any operating load. The MDX 16 for custom install is a high efficiency product that surpasses global-power saving standards. A smooth digital switching output allows digital inputs to be linked between multiple amplifiers and multiple MDX units to be set up in a daisy chain connection.
Dedicated Subwoofer Zones
Extend your system by adding a subwoofer to the MDX 16. This product features dedicated independent zones which have independent outputs in order to power the subwoofer. You can install and control the subwoofers once connected to an MDX and they will benefit from Anthem Room Correction where you can manage the acoustic output and bass for a flawless integration with the main speakers.
Complete Zone Control
Zone configuration options give you full management, allowing you to change the names of the zones, control tuning, input assignments, and independent playback. Bass management can be achieved in any zone, you can bridge zones for more power and manage the crossover settings.
