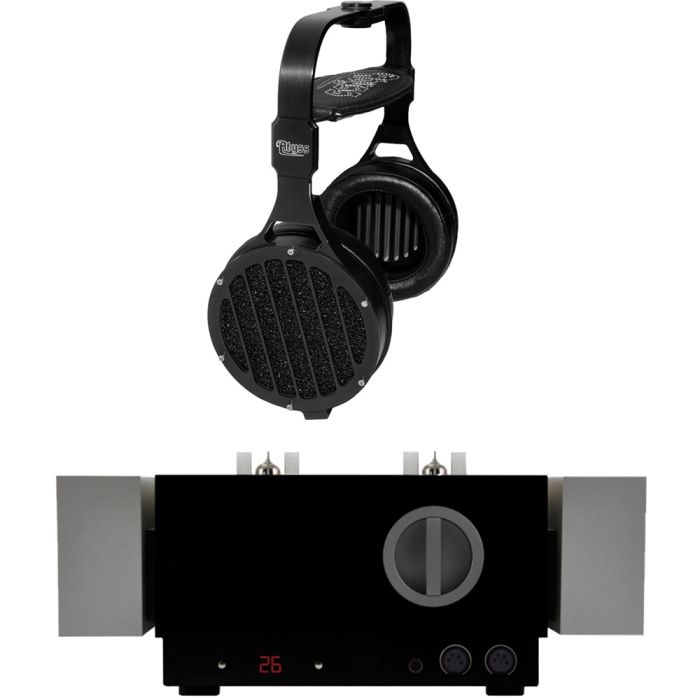

Abyss AB-1266 Phi TC and Pathos InPol Ear Headphones Package
In stock
Features
| Includes Pre Amp | No |
|---|---|
| Digital USB Input | No |
| Brand Color | None |
| Digital Optical Input | No |
| Digital Coaxial Input | No |
| Warranty The length of time your product is protected by warranty | Full Warranty |
| Product Type | Other |
Tech Specs
Abyss AB-1266 Phi TC Headphones
- Frequency Response: 5 Hz to 28 KHz
- Impedance: 46 ohms nominal (non-reactive)
- Sensitivity: 85 dB
- Distortion: Less than 1%; Less than 0.2% through ears most sensitive range
- Weight: 660 grams (without cable)
Pathos InPol Ear Headphone Amplifier
Amplifier
- Type: Reference stereo
- Use: Integrated Headphone
- Tech: Pure class A double INPOL
Output
- 32Ω: 3W bal, 10W Unbal
- 50Ω: 1.9W bal, 6.4W Unbal
- 120Ω: 800mW bal, 2.7W Unbal
- 300Ω: 320mW bal, 1W Unbal
- 600Ω: 160mW bal, 533mW Unbal
- Impedance: Bal 0.9Ω, Unbal 0.45Ω
Performance
- Freq response: 2Hz – 200KHz ±0.5db
- Sensitivity/Impedance: 2.2VRMS, 100KΩ
- Polarity: Selectable by remote
- Vol regulator: 2 x Burr Brown PGA2310
- THD: 0.1% @11W, SNR: >100dB
- Max: (In) 4.4, (Out) 20/10VRMS
Connections
- Analog In: Bal XRL, 4 unbal RCA
- (HiDac required for below inputs)
- USB: 1 Type “B”, 2 Type “A”
- SPDIF: coaxial, SPDIF optical,
- Ethernet: RJ45
- Outputs: Pre stereo line RCA
- XLR: Preout stereo line Bal
- Headphone: 6.3mm Jack connector
- 4 pin XRL: 2 Connectors
General
- Power consumption: 110W
- Dimensions (DWH): 370 x 280 x 180mm
- Weight: 12.5Kg
Description
An expertly matched hi-fi headphone package combining theAbyss AB-1266 Phi TC Headphones and Abyss AB-1266 Phi TC Headphones.
Abyss AB-1266 Phi TC Headphones
A less expensive alternative to the Deluxe Abyss Headphones Package, this is the latest Phi TC (total consciousness) version of these incredibly impressive Abyss headphones. If you don't need the leather man bag and different cable included with deluxe, you can proudly own one of the finest headphones we've ever heard at this lower price.
View Full Product Details Here
Pathos InPol Ear Headphone Amplifier
Pathos InPol Ear is a high end Class A headphone amplifier (with optional DAC) based around a fully balanced design and latest generation double InPol technology. The dual-match valve/headphone meets the highest quality of the sound enabled by the tubes with a low power demand that is typical of headphones.
