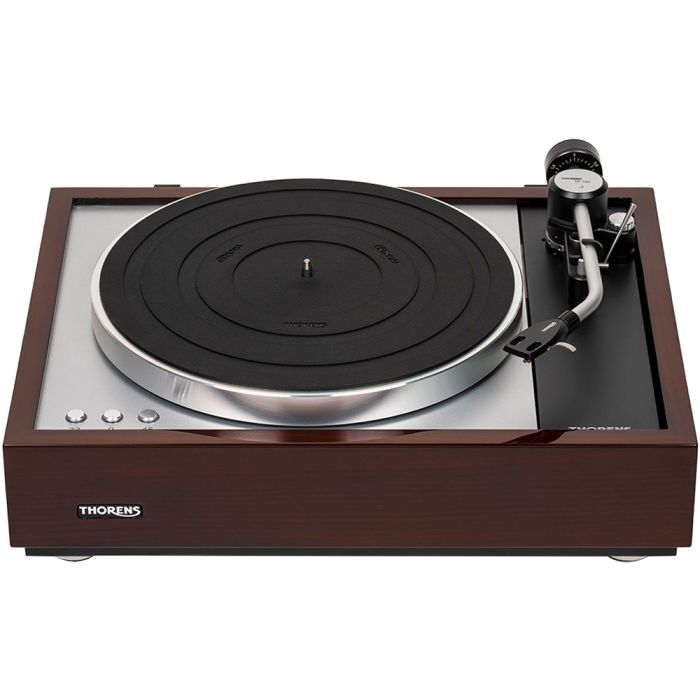

Thorens TD 1600 Turntable with TP160 Tonearm

The Thorens TD 1600 Turntable with TP160 Tonearm represents the latest evolution of one of the most respected designs in the world of analogue playback. Combining classic Thorens aesthetics with modern engineering refinements, this turntable delivers exceptional performance while preserving the timeless character that vinyl enthusiasts admire.

The beautifully finished wooden plinth houses a sophisticated subchassis design and a precision-engineered drive system built to deliver outstanding sonic stability. At the centre of the design is a two-part machined aluminium platter driven by a polished precision belt, ensuring smooth and consistent rotation.

By combining traditional craftsmanship with contemporary engineering techniques, the TD 1600 continues the legacy of Thorens’ iconic suspended turntables while offering improved performance and reliability for modern high-fidelity systems.

Precision Engineering with the TP160 Tonearm

A key highlight of the Thorens TD 1600 Turntable with TP160 Tonearm is the newly developed TP160 tonearm, designed by renowned tonearm specialist Helmut Thiele. This 9-inch J-shaped tonearm features an ultra-precise knife-edge bearing system that allows exceptionally smooth and accurate movement.

Inspired by the geometry and performance of professional studio tonearms, the TP160 provides excellent tracking capability and precise groove retrieval. The horizontal bearing blade is further stabilised using magnetic support, reducing friction and ensuring highly accurate stylus tracking across the record surface.

The tonearm also incorporates an SME-type headshell connector, allowing easy cartridge installation and compatibility with a wide range of high-quality cartridges. This refined tonearm design enhances musical detail, improves imaging, and preserves the natural character of vinyl playback.

Advanced Subchassis Suspension System

The Thorens TD 1600 Turntable with TP160 Tonearm utilises a carefully engineered suspended subchassis system designed to isolate the playback mechanism from external vibrations. Unlike traditional suspended designs, the three conical springs supporting the subchassis rest on the base rather than hanging from the top plate.

This configuration improves mechanical stability and reduces unwanted movement. In addition, a tensioned steel thread runs from the motor pulley axis to the turntable spindle axis, preventing lateral tilt and ensuring the subchassis moves in a controlled, piston-like motion.

This precise suspension behaviour significantly reduces vibration and resonance, resulting in improved tracking accuracy and cleaner audio reproduction. By maintaining stable alignment between platter, tonearm, and cartridge, the TD 1600 achieves superior performance even in demanding listening environments.

Stable Drive System and Precision Platter

The drive system of the Thorens TD 1600 Turntable with TP160 Tonearm has been engineered to provide exceptional rotational stability. The two-part aluminium platter is carefully machined to ensure optimal balance and mass distribution, contributing to smooth and consistent playback. A polished precision belt runs internally around the drive system, transmitting power efficiently while minimising mechanical noise.

Belt tension can be precisely adjusted to achieve optimal performance. The electronically controlled synchronous motor ensures accurate speed regulation, maintaining consistent platter rotation for both 33⅓ and 45 RPM playback. This advanced drive design minimises speed fluctuations and mechanical vibration, helping to preserve pitch accuracy and timing.

The result is a stable, reliable playback platform that allows the music contained within the grooves to be reproduced with clarity and precision.

True Balanced Connectivity for Pure Signal Transfer

To maintain the integrity of the delicate phono signal, the Thorens TD 1600 Turntable with TP160 Tonearm features both traditional RCA outputs and professional-grade balanced XLR outputs. Balanced connections provide superior resistance to electrical interference, which is particularly important given the extremely low output level produced by a phono cartridge.

When paired with a compatible phono stage and moving coil (MC) cartridge, the true balanced output allows the signal to be transmitted with minimal noise and maximum purity. This professional-level connectivity ensures the highest possible signal integrity from the turntable to the amplification stage. By reducing susceptibility to external interference, the TD 1600 enables listeners to experience the full depth, detail, and dynamic expression contained within their vinyl records.

External Linear Power Supply for Ultimate Stability

Power for the Thorens TD 1600 Turntable with TP160 Tonearm is supplied by the dedicated external TPN 1600 linear power supply. This high-quality unit incorporates a robust toroidal transformer designed to deliver exceptionally clean and stable power to the turntable’s motor system. The power supply provides two precisely regulated 16-volt outputs, ensuring consistent motor operation and optimal rotational stability of the platter.

By locating the power supply outside the main chassis, electrical noise and vibration are kept away from the sensitive playback components. This separation contributes to a quieter background and improved overall performance. Combined with the precision mechanical engineering of the TD 1600, the external power supply helps create an exceptionally stable analogue playback platform capable of revealing the finest musical details.
