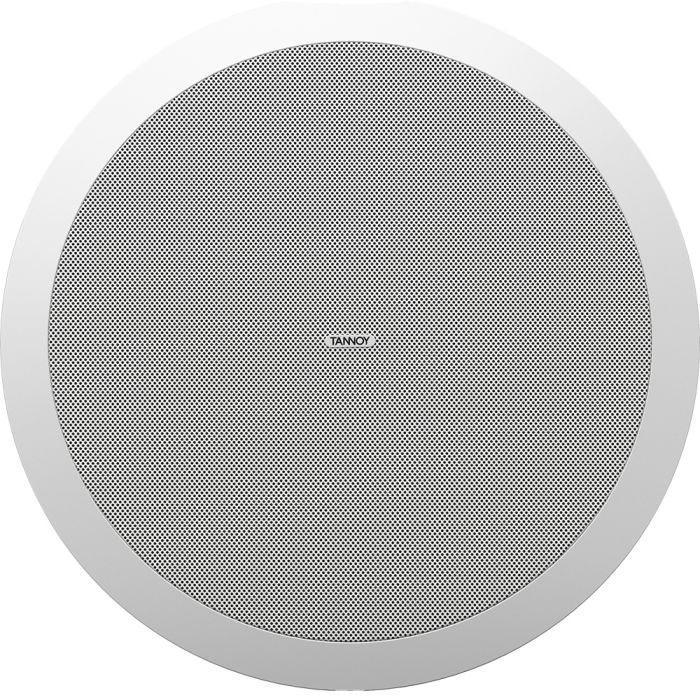

Tannoy CMS 603ICT PI In Ceiling Speaker (Pair)
In stock
Available - Usually ships within 2-3 days
Features
| Is Aimable | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | Full Warranty |
| Product Type | Other |
Tech Specs
Performance
- Frequency range (-10 dB) <sup>(1)</sup> - 46 Hz - 24 kHz
- System sensitivity (1 W @ 1 m) <sup>(2)</sup> - 91 dB (1 W = 4 V for 16 Ohms)
- Nominal Coverage Angle - 90 degrees conical
- Coverage Angle (1 kHz to 6 kHz) - 92 degrees
- Directivity Factor (Q) - 7.1 averaged 1 kHz to 6 kHz
- Directivity Index (DI) - 7.9 averaged 1 kHz to 6 kHz
- Recommended Amplifier Power - 120 W @ 16 Ohms
- Nominal Impedance (Lo, Z) - 16 Ohms
- Crossover - 7 kHz inductively coupled
Transducers
- Low Frequency - 165 mm (6.50") mineral loaded polypropylene
- High Frequency - ICT aluminium dome
Physical
- Safety Features - Safety ring located at rear of enclosure for load bearing safety bond
- CMS 603ICT LS - UL 1480 UUMW certification for Life Safety applications
- Clamping Design - Security toggle clamp Min / Max clamping range 9.5 mm (0.37") / 60 mm (2.36")
- Recommended clamp torque: 1.5 Nm
- Backcan Options - Separate backcan for pre-installation
- Cable Entry Options - Cable clamp & squeeze connector for conduit up to 22 mm
- Conduit Knockouts on PI Backcan - 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75" / 0.87" / 1.10")
- Connectors - Removable locking connector with screw terminals with “loop through” facility
- Compliance - UL-1480, UL-2043, CE
Dimensions
- Hole cutout diameter (all models) - 253 mm (9.96")
- Included Accessories - C-Ring, tile-bridge kit, paint mask, cut-out template, grille
- Optional Accessories - Plaster (mud) ring, Arco grille
Description
The Tannoy CMS 603ICT PI in ceiling speaker (Pair) is a high-performance, 240-Watt loudspeaker designed for installation in various commercial and professional environments. It features CMS 3.0 technology, the third generation of the Ceiling Monitor System, which offers wide bandwidth and high sensitivity for superior audio quality.
The standout feature of this model is the proprietary 6" ICT (Inductive Coupling Technology) point-source driver. This driver extends the frequency range and ensures consistent broadband directivity, making it ideal for applications where speech intelligibility and balanced sound reproduction are crucial.
With its enhanced performance and long-term reliability, the CMS 603ICT PI is engineered for constant-usage environments, delivering clear, crisp audio day in and day out.
Optimized for Easy and Reliable Installation
Designed with installation ease in mind, the CMS 603ICT PI includes a self-aligning 4-way clamp system, enabling fast, secure, and cost-effective mounting. The system also features an extended clamp to accommodate thicker ceiling panels and a locking mechanism that prevents over-tightening, ensuring the speaker stays firmly in place without damaging the ceiling.
A front-panel tap switch allows for convenient adjustment of the 60 W transformer, which is mounted in the optional CMS 603 PI BACKCAN. For added convenience, the speaker comes with a paintable powder-coated steel mesh grille, dust protection, two tile support rails, and one C-ring, all included in the package.
Optional accessories, such as the Arco style grille and plaster ring, are also available to provide an aesthetic finish while concealing the speaker and back can.
LAB GRUPPEN Ready for Seamless Integration
The CMS 603ICT PI is finished in semi-matt white and is fully optimized for use with LAB GRUPPEN LUCIA amplifiers, making it a great choice for large installations. The LUCIA amplifiers can accommodate up to 8 CMS Series loudspeakers per channel, ensuring flexibility and scalability for various installation sizes.
This loudspeaker system is built to provide reliable, high-quality audio performance in any space, whether it’s for background music, paging systems, or other audio applications where clarity and coverage are key. With LAB GRUPPEN compatibility, the CMS 603ICT PI is ideal for professional audio systems that require efficient integration, superior sound, and long-lasting reliability.
