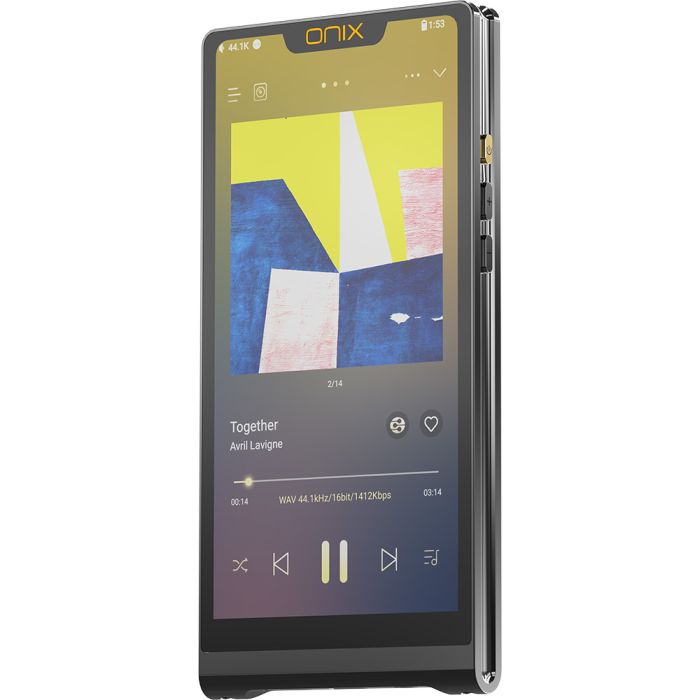

Shanling Onix XM10 Ltd Android Digital Audio Player
In stock
Available - Usually ships within 2-3 days
Features
| Optical Digital Output | No |
|---|---|
| Brand Color | None |
| AUX In | No |
| RCA Output | No |
| Coaxial Digital Output | No |
| Warranty The length of time your product is protected by warranty | 1 Year |
| Product Type | Other |
Tech Specs
General
- Display: 6.0 in touchscreen (2160 × 1080)
- CPU: Qualcomm Snapdragon 665
- Operating system: Open Android 13
- Memory: 6 GB RAM + 128 GB ROM + MicroSD card slot
- MicroSD support: Up to 2 TB
- Dimensions: 157.7 x 76.8 x 11.5 mm
- Weight: 338 g
Audio Hardware
- DAC system: AKM AK4191 + AK4499EX
Wireless Connectivity
- Bluetooth: Two-way Bluetooth 5.0
- Bluetooth transmission codecs: LDAC, aptX HD, aptX, AAC, SBC
- Bluetooth reception codecs: LDAC, SBC
Hi-Res Audio Support
- Local playback: Up to PCM 768 kHz / 32-bit, DSD1024
- USB DAC mode: PCM 384 kHz / 32-bit, DSD256
Supported Audio Formats
- DSD (ISO, DSF, DFF)
- WAV, FLAC, APE, AIFF, AIF
- DTS, MP3, WMA, AAC, OGG, ALAC
- MP2, M4A, AC3
- Playlists: M3U, M3U8, OPUS
Battery
- Capacity: 4300 mAh lithium battery
- Battery life:
- Single-ended: up to 9 hours
- Balanced: up to 9 hours
Headphone Outputs
- 3.5 mm single-ended
- 4.4 mm balanced (via 3.5 mm to 4.4 mm adapter)
3.5 mm Single-Ended Output
- Output power:
- Low gain: 19 mW @ 32 ohm (1.3 V @ 32 ohm)
- High gain: 227 mW @ 32 ohm (2.7 V @ 32 ohm)
- High gain: 24 mW @ 300 ohm (2.7 V @ 300 ohm)
- Frequency response: 20 Hz–40 kHz (-0.5 dB)
- THD+N: 0.0009 % @ 32 ohm (A-weighted, 0.25 V high gain)
- Dynamic range: 122 dB @ 32 ohm
- Channel separation: 72 dB @ 32 ohm
- Signal-to-noise ratio: 122 dB @ 32 ohm (A-weighted, high gain)
- Noise floor: 113 dB
- Output impedance: 0.6 ohm
4.4 mm Balanced Output
- Output power:
- Low gain: 227 mW @ 32 ohm (2.7 V @ 32 ohm)
- High gain: 877 mW @ 32 ohm (5.3 V @ 32 ohm)
- High gain: 93 mW @ 300 ohm (5.3 V @ 300 ohm)
- Frequency response: 20 Hz–40 kHz (-0.5 dB)
- THD+N: 0.0007 % @ 32 ohm (A-weighted, 0.5 V high gain)
- Dynamic range: 124 dB @ 32 ohm
- Channel separation: 100 dB @ 32 ohm
- Signal-to-noise ratio: 124 dB @ 32 ohm (A-weighted, high gain)
- Noise floor: 110 dB
- Output impedance: 1.0 ohm
Description
The Shanling Onix XM10 Waltz Ltd Android Digital Audio Player takes the acclaimed ONIX concept and transforms it into a truly high-end portable Hi-Fi experience. Originally developed as part of the ONIX Miracle system, the XM10 has evolved into a fully capable standalone digital audio player designed for serious audiophiles. Despite its compact form, it delivers performance that rivals many dedicated flagship portable players on the market.
Fully compatible with the ONIX Miracle ecosystem, it can also function as a digital transport and streaming centre for larger Hi-Fi systems. This versatility makes it equally suitable for portable listening and advanced home audio setups. Combining premium engineering with modern streaming capabilities, the XM10 Waltz Ltd offers a refined listening experience wherever music takes you.
Ultra-Slim Design with Premium Build Quality
One of the standout features of the Shanling Onix XM10 Waltz Ltd Android Digital Audio Player is its remarkably slim design. Measuring just 11.5mm thick, it achieves a level of portability closer to a modern smartphone while avoiding the bulky dimensions often associated with high-performance audio players.
The stainless steel construction gives the device a reassuringly solid and premium feel in the hand, while the polished electroplated finish enhances its elegant appearance.
A large 6-inch 2160 x 1080 display provides sharp visuals and smooth navigation, making it easy to browse music libraries and streaming apps. Despite its slim profile, the player maintains excellent durability and a luxurious presentation that reflects its flagship ambitions.
High-End Audio Architecture for Serious Listening
At the heart of the Shanling Onix XM10 Waltz Ltd Android Digital Audio Player is a sophisticated audio circuit built around the flagship AKM AK4499EX DAC and AK4191 modulator. Supported by dual AD8397 amplifiers, the player delivers a detailed, natural, and highly dynamic sound signature that appeals to discerning listeners.
Shanling’s in-house “Brighton” I/V conversion circuit, FPGA processing, and precision KDS crystal oscillators further refine performance, ensuring exceptional clarity and timing accuracy.
The included 3.5mm to 4.4mm adapter unlocks balanced output capability, allowing users to experience increased power and improved channel separation. Whether paired with sensitive in-ear monitors or demanding full-size headphones, the XM10 Waltz Ltd delivers a rich and immersive high-resolution audio experience.
Android 13 and Comprehensive Connectivity
Running on Android 13, the Shanling Onix XM10 Waltz Ltd Android Digital Audio Player provides a modern and flexible platform for streaming and local playback. The open Android system allows easy installation of music apps while Shanling’s customised sound platform ensures bit-perfect playback for uncompromised audio quality.
With 6GB of RAM, 128GB of internal storage, and microSD card expansion, users have ample room for extensive music libraries. Connectivity options include two-way Bluetooth 5.0 with LDAC and aptX support, along with dual-band Wi-Fi for DLNA and AirPlay streaming.
A 4300mAh battery delivers up to nine hours of playback, while USB-C fast charging with QC and PD support keeps the player ready for extended listening sessions.
