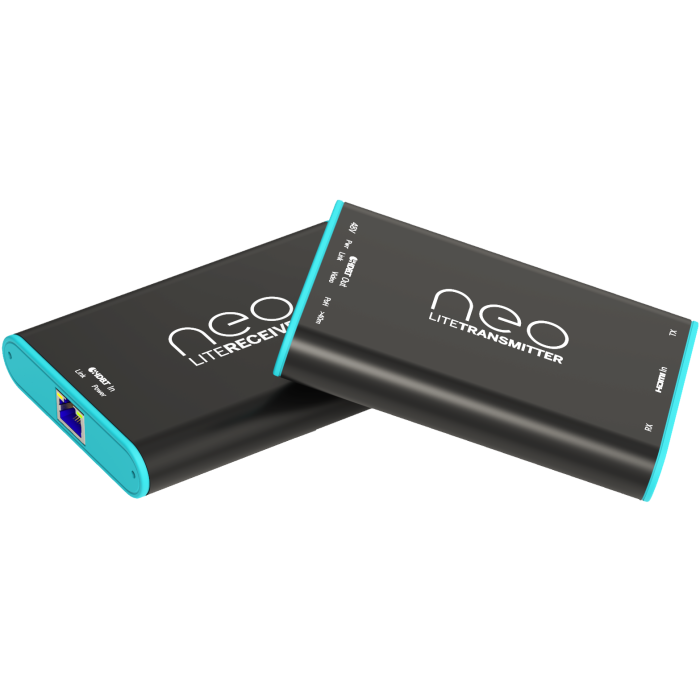

PulseEight Neo Lite HDMI Extender
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
- Transmitter Inputs: 1 x HDMI
- Transmitter Outputs: 1 x HDBaseT Class B
- Receiver Inputs: 1 x HDBaseT Class B
- Receiver Outputs: 1 x HDMI
- Max HDBaseT Cable Distance 4K: 40 metres
- Max HDBaseT Cable Distance 1080p: 70 metres
- HDBaseT Recommended Cable: Cat5e or greater
- Colour Supported: 4K: 8bit, 1080p: 12 bit
- Colour Depth: Upto 36 bit (3 x 12 bit)
- TMDS Clock Speed: 340 Mhz
- Max Bandwidth: 10.2 Gbps
- Encryption: HDCP 1.4 and HDCP 2.2
- PoH: neo:Lite PoH Reciever
- Infrared: Bi-Directional
- CEC Control: Full
- ARC (Audio Return Channel): No
- DSC (Display Stream Compression: No
- Ethernet Pass-through: No
- Wall Mountable: Yes – bracket sold separately
- Power Supply: 1 x 48V @ 0.5A (Transmitter only)
- Power Consumption: Transmitter: 3W / Receiver: 5.5W
- Material: Extruded Aluminium
- Product Dimensions: 11.5 x 8.2 x 1.8cm each
- Product Weight: 0.14kg each
- Operating Temp Range: 0 to +40 degrees (32 to 104 Fahrenheit)
- Operating Humidity Range: 20 to 90% RH (no condensation)
Description
PulseEight Neo Lite HDMI Extender allows the transmission of 4K or 1080P HDMI signals over CAT5e, CAT6 or CAT7 cabling. It offers a solution for projecting content further without compromising on sound quality, and is an ideal extension for custom audio visual or home cinema systems.
Superb Extension Solution
The Neo Lite can extend 4K up to 40 metres and 1080p to 70 metres over Cat5e/6/7. It is a low power extension solution enhanced with HDBaseT technology that can be racked on a wall. Alongside this, your AV source be stored in a specific rack a distance away from your viewing location thanks to the fully HDCP compliant transmission feature.
Key Features
- Extend 4K up to 40 Meters and 1080p to 70 Meters over Cat5e/6/7
- UltraHD 4K Transmission, 1080p@60Hz/36-bit, 720p, VGA-WUXGA formats.
- Bi-Directional Infra-Red Transmission
- Full HDMI Audio support
- PoH Receiver
