PulseEight Neo 8a Professional 8x10 Video Matrix
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
MATRIX:
- Dimensions (WxHxD): 43 cm / 8.9 cm / 29.5 cm
- Material: Smooth textured powder coated steel
- Operating Temperature Range: 0 to +35°C (32 to +95°F)
- Operating Humidity Range: 5 to 90 % RH (no condensation)
- Power Supply: 1 x IEC C14 Inlet - 100-240V 4.0/2.0A 50/60Hz
- Power Consumption: Max 2Amps @ 240V
- Video Input: 8x HDMI
- Clock Speed: Input: 340Mhz, Output: 340Mhz
- Video Output: 2x HDMI and 8x HDBaseT™ Class B (Lite)
- Colour Supported: 4K/24bit, 1080p/36bit
- 3D Supported: Up to 1080/24p - Frame packing/sequential (Blu-ray)
- Interlaced stereoscopic (Satellite/cable broadcasts)
- Additional: HDMI 2.0a 3840 x 2160p 60Hz YCC 4:2:0 format pass-through
- Encryption: HDCP and HDCP 2.2
- Supported Video Resolutions: 720p, 1080i, 1080p (+3D), 4k (30Hz) 4:4:4, 4k (50/60Hz) 4:2:0
RECEIVERS:
- Dimensions (WxHxD): 11cm/8.2cm/1.8cm each
- Weight: 140g each
- Material: Extruded Aluminium
- Operating Temperature Range: 0 to +40°C (32 to +104°F)
- Operating Humidity Range: 20 to 90% RH (no condensation)
- Power Consumption: Receiver 5.5W
- Receiver 1 X HDMI 2.0a
- Colour Supported: 4K/24bit, 1080p/36bit
- Max Video Bandwidth: 300MHz/10.2Gbps
- Encryption: HDCP 1.4 and HDCP 2.2
- Supported Video Resolutions: 720p, 1080i, 1080p (+3D), 4k (30Hz) 4:4:4, 4k (50/60Hz) 4:2:0
Description
PulseEight Neo 8 Professional 8x10 Video Matrix has 8 HDMI inputs, 8 HDBaseT Class B Outputs and 2 HDMI outputs, which can be independent or cloned to other zones and provide you with instant access to all your connected devices in stunning Ultra HD 4K, 1080p or 3D. It also features support for Amazon Alexa and IR control.
Advanced Technologies
The Matrix range from PulseEight pair technological advancements with a highly functional design in order to deliver the highest performing video distribution system out there. It enables instant video connectivity throughout the home using HDBaseT link technology. It accommodates multiple sources with 8 outputs.
Contextual IR
With the creation of Contextual IR gone are the days pressing through button after button to connect to your TV source, you now just have 8 buttons to connect to whatever room you're in. Simply press numbers 1-8 for each possible input.
HDMI-CEC
You can also use a standard TV remote to connect to one of your input devices through the use of CEC technology. Pressing the source key will list the all the input devices so you can simple select the one you want and the Neo 8 Professional 8x10 Video Matrix will do the rest, routing your video automatically, regardless of if the source supports CEC.
Instant on with Sky+HD Box
Sky's innovative remote control feature that uses CEC support is a Sky button that turns the TV and Sky+HD box on simultaneously. This inspired Pulse-Eight to develop their own feature, an Instant on button that works by sensing when the Sky button is turned on in any room and correspondingly switching the video path to your Sky+ HD box. With the Neo linked up to your Sky box it can detect which one is not in use and route it to your TV.

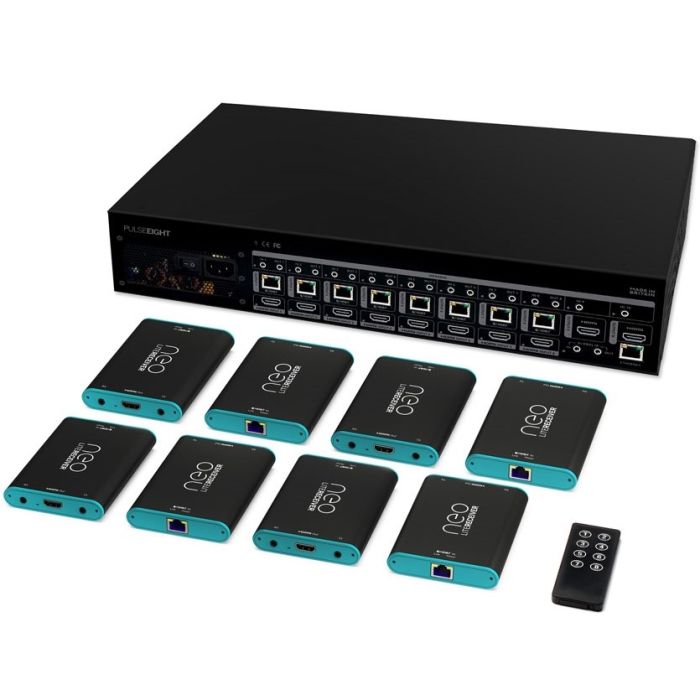

Kit Includes
- neo:4 Professional Chassis
- 8x P8-HDBT-L-RX-S neo:Lite Receiver
- Rack Mounting Kit
- 48V External Power Supply with locking connector
- Country Specific Power Cord
- P8-IRPACK
- 8x Infrared Blaster Cable Pack (TX/RX Pack)
- Installation Guide
- 8 Button Remote Control
Key Features
- Ultra HD 'Premium' 4K Video Transmission (upto 340Mhz), 1080p, 3D.
- 8 x HDMI Inputs (HDMI 2.0 with HDCP 2.2)
- 8 x HDBaseT Class B Outputs
- 2 x Configurable HDMI Outputs (9 + 10)
- HDMI-CEC Bi-Directional Control
- Bi-Directional IR Control
- Responsive Web Interface
- Automatic EDID Management
- Three year standard warranty
- Control System Support
- Sky / Virgin IP Control
- Alexa Voice Control
