PulseEight Neo 4 Professional 4x4 Video Matrix
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
MATRIX:
- 1U 19” rack-mountable chassis with 4 HDMI inputs
- 4 Cat outputs and 2 mirrored HDMI outputs.
- Width: 43 cm / 16.9”
- Height: 4.5 cm / 1.7”
- Depth: 14 cm / 5.5”
- Weight: 2.05 KG / 4.5lb
RECEIVERS:
- Dimensions (WxHxD): 11cm/8.2cm/1.8cm each
- Weight: 140g each
- Material: Extruded Aluminium
- Operating Temperature Range: 0 to +40°C (32 to +104°F)
- Operating Humidity Range: 20 to 90% RH (no condensation)
- Power Consumption: Receiver 5.5W
- Receiver 1 X HDMI 2.0a
- Colour Supported: 4K/24bit, 1080p/36bit
- Max Video Bandwidth: 300MHz/10.2Gbps
- Encryption: HDCP 1.4 and HDCP 2.2
- Supported Video Resolutions: 720p, 1080i, 1080p (+3D), 4k (30Hz) 4:4:4, 4k (50/60Hz) 4:2:0
Description
PulseEight Neo 4 Professional 4x4 Video Matrix is the flagship model which accepts multiple HDMI inputs and multiple HDMI outputs allowing differing combinations of video distribution throughout the home. It provides you with instant access to all your connected devices in stunning Ultra HD 4K, 1080p or 3D.
Contextual IR
The Matrix range aims to provide the best possible video distribution system you can get. It helps to ensure that every TV receives the best video quality via HDBaseT link technology. It offers 4 inputs and 4 outputs allowing 16 variations of your video. Condensed down into just 4 buttons on the remote using Contextual IR which makes things so much simpler, you just select a number between 1-4 for whatever room you're in and instantly connect to your audio visual soure.
HDMI-CEC
Alongside the IR you can use a standard TV remote to connect to one of your input devices through CEC technology. Pressing the source key will list the input devices and you can select one you want and the Neo 4 Professional 4x4 Video Matrix will route the video automatically regardless of if the source supports CEC.
Instant on with Sky+HD Box
Sky's innovative remote control feature that uses CEC support is a Sky button that turns the TV and Sky+HD box on simultaneously. This inspired Pulse-Eight to develop their own feature, an Instant on button that works by sensing when the Sky button is turned on in any room and correspondingly switching the video path to your Sky+ HD box. With the Neo linked up to your Sky box it can detect which one is not in use and route it to your TV.

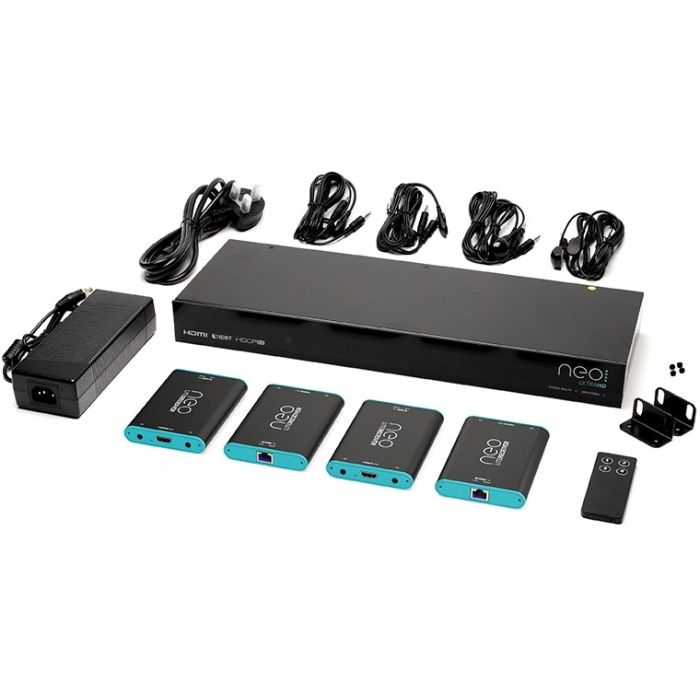

Kit Includes
- neo:4 Professional Chassis
- 4x P8-HDBT-L-RX-S neo:Lite Receiver
- Rack Mounting Kit
- 48V External Power Supply with locking connector
- Country Specific Power Cord
- P8-IRPACK
- 5x Infrared Blaster Cable Pack (TX/RX Pack)
- Installation Guide
- 4 Button Remote Control
Key Features
- Web Interface - accessible from mobile devices, tablets, PC,and browsers
- Cloud Management Service via the Monitored LED
- Ultra HD 4K Video Transmission (upto 340Mhz), 1080p, 3D
- Full HDCP 2.2 Support
- 4x HDMI Inputs
- 4x HDBaseT Class B Outputs
- 2x HDMI Outputs (Mirrored)
- 4x neo:Lite PoH Receivers Included
- HDMI-CEC Bi-Directional Control
- Bi-Directional IR Control
- Responsive Web Interface
- Automatic EDID Management
