Pro-Ject Pre Box S2 Digital 2023 Pre Amplifier
In stock
Features
| Remote Control | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Digital inputs: 1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink)
- D/A-converter: 2x ESS9038Q2M 32-bit
- USB: up to DSD512 (DSD1024), PCM up to 32b/768kHz
- Optical: PCM up to 24b/192kHz
- Coaxial: PCM up to 24b/192kHz
- Filter settings: 7 different selectable on front
- Frequency response: 20 Hz - 20 kHz
- Analogue outputs: 6.3mm Headphone (front), 1x Variable Out (RCA
- Output voltage: 2.05 Veff
- Minimal recommended headphone impedance: 8 Ohm
- Headphone output power: 6.6 mW / 600 Ohm; 100 mW / 32 Ohm
- THD: 0.0003% @ 0 dB, 2V RMS, 1 kHz
- Dynamic range: 124 dBA
- Outboard Power supply: 5V/1A DC (included)
- Dimensions W x H x D: 103 x 37 x 122 mm (including knob and connectors)
- Weight: 366 g (without power supply)
Description

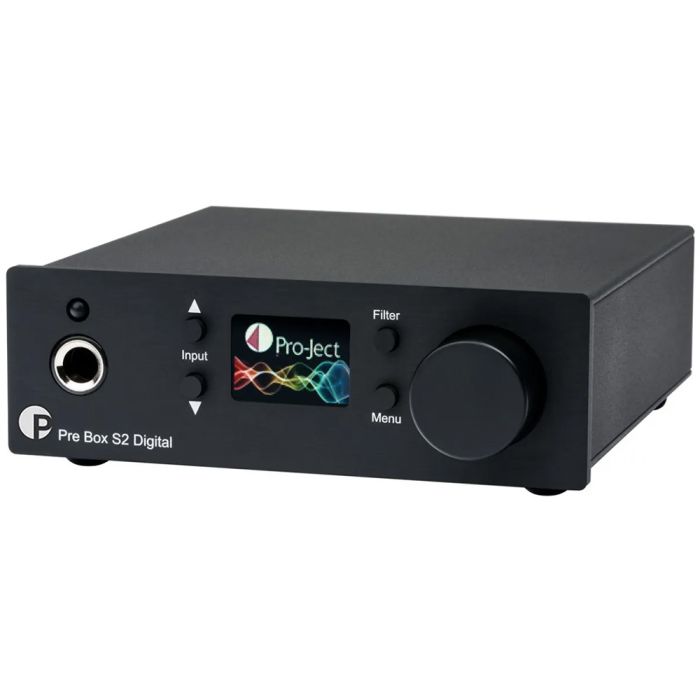

The Pro-Ject Pre Box S2 Digital 2023 Pre Amplifier is a micro preamplifier with top-of-the-line DAC chips and MQA support. It is an upgraded version of the classic Pre Box S2 Digital. Firstly, the power supply has been redesigned and has increased isolation from PC USB noise.
There is also a more accurate clock, for reduced jitter, and a more efficient power supply. This is useful for mobile use. Lastly, the output stage power has been boosted for better compatibility with low-impedance headphones and less distortion.
Upgraded internal power supply design
The Power supplies to the clock, DACs, and analogue stages have been enhanced. Now, in the Pro-Ject Pre Box S2 Digital 2023 Pre Amplifier, noise from the PC USB line has been reduced. Moreover, the output frequency response is wider and flatter.
Dual mono DAC
The Pro-Ject Pre Box S2 Digital 2023 Pre Amplifier features a Dual mono high-end, ESS, Sabre ESS9038 DAC. This forms the heart of the unit and can handle DSD64, DSD128, DSD256 & DSD512 (DoP, DSD512 native) Up to 24bit/192kHz. Lastly, there are 7 selectable filter settings. Using two DACs improves channel separation and lowers distortion.
Connectivity
There is a 6.3mm output for headphones, on the front of the Pro-Ject Pre Box S2 Digital 2023 Pre Amplifier. Additionally, there is a variable output RCA connection on the back. Digital inputs include USB as well as an optical and a coaxial input.
New master audio clocks
The master clock in a DAC is important for jitter performance. As a result, the clock in the Pro-Ject Pre Box S2 Digital 2023 Pre Amplifier has been improved. It now has lower phase noise. Notably, there are various types of jitter. In audio, It is mainly caused by slight timing errors in the clock signal. Jitter can be present in both analogue-to-digital conversion as well as digital to analogue conversion.
New higher-powered output stage
The output stage in the Pro-Ject Pre Box S2 Digital 2023 Pre Amplifier is class A, and based around the ESS SABRE9603Q chip. This has improved operating current. As a result, it can drive lower-impedance headphones and cope with long cable runs.
More efficient headphone amplifier
The headphone amplifier in the Pro-Ject Pre Box S2 Digital 2023 Pre Amplifier now uses 12% less power. It also offers a higher operating current. This gives less distortion with low-impedance headphones. Additionally, the lower power draw for mobile use is a bonus. Also, an external 5v PSU is provided. The sound quality is consequently boosted by the new design. Lastly, the quality housing is made of rigid aluminium for a long life.
A couple of use cases
The Pro-Ject Pre Box S2 Digital 2023 Pre Amplifier is a versatile unit and can be used with or without a streamer. For example, a PC or laptop can be used as the source, connected via USB. Alternatively, the Stream Box S2 ultra can be used, and connected via USB. The streamer will then connect via WIFI. Both setups will need a power amplifier that is connected to the RCA outputs. A remote control is provided that can control the volume as well as other functions.
