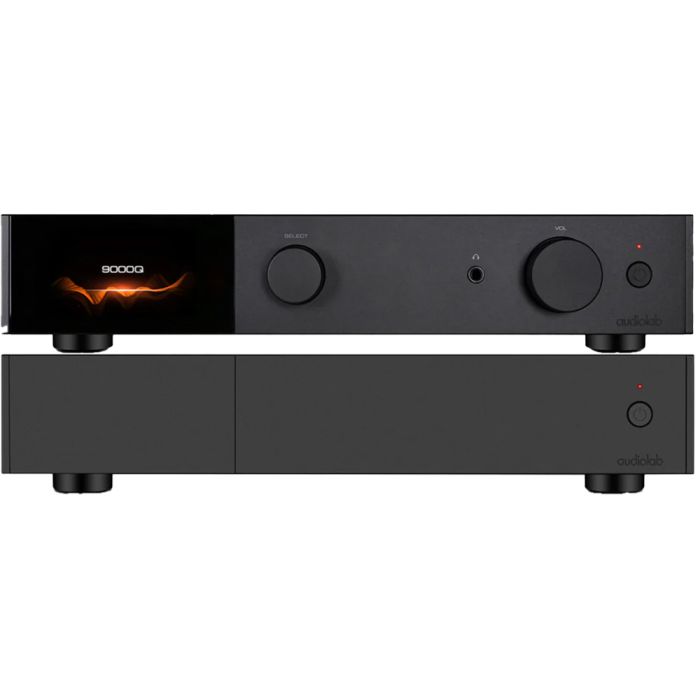

Audiolab 9000Q Pre and 9000P Power Amplifier Package
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
The Power Amp - Audiolab 9000P Power Amplifier
- Model - 9000P
- General Description - Power Amplifier
- Design Philosophy and Core Technology - Class AB power amplifier
- CFB (Complementary Feedback Technology)
- Stereo/Bridge mode
- Inputs - 1 x Analogue, 1 x XLR, 1 x 12V Trigger
- Outputs - 1 x Stereo Speaker
- Power Amplifier Section (STEREO) -
- Gain - 29dB (RCA) / 23dB (XLR)
- Rated Power Output - Stereo: 2 x 100W (8 ohms, THD <1%)
- Stereo: 2 x 160W (4 ohms, THD <1%)
- Bridged (Mono): 300W (8 ohms, THD <1%)
- Bridged (Mono): 380W (4 ohms, THD <1%)
- Frequency Response - 20Hz - 20kHz (+/-0.3dB)
- Total Harmonic Distortion (THD) - <0.002% (1kHz)
- Input Sensitivity - 1Vrms (RCA)
- 2Vrms (XLR)
- Input Impedance - 10k ohms
- Signal-to-Noise Ratio (S/N) - > 112dB (A-weighted)
- Max. Output Current - 15A
General -
- Standby Power Consumption - <0.5W
- Net Weight - 9.2kg
- Gross Weight - 10.6kg
- Dimensions (mm) (W x H x D) - 444 x 90 x 327 mm
- Carton Size (mm) (W x H x D) - 514 x 165 x 470 mm
- Finish - Black/Silver
- Power Requirements (depending on region) - 220-240V - 50/60Hz
- 100-120V - 50/60Hz
- Standard Accessories - Power Cord, User Manual
The Pre Amp - Audiolab 9000Q Pre Amplifier/h4>
- Model - 90000Q
- General Description - Preamplifier
- Design Philosophy and Core Technology - ES9038Pro 32-bit DAC
- MQA Full decoder (PC USB, Coax/Optical)
- 4.3” 800 x 480 IPS LCD
- Bluetooth 5.1 (aptX/aptX HD/LDAC) streaming
- Dedicated Current-Feedback Headphone Amp
- Dedicated High Performance Low Noise MM Phono stage
- Inputs - 3 x Analogue, 1 x XLR, 1 x Phono (MM)
- 2 x SPDIF (Coax), 2 x SPDIF (Optical)
- 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX HD/LDAC)
- Outputs - 2 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger
- Sampling Frequency - Optical/Coaxial: 44.1-192kHz
- Sampling Frequency
- PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD5, DSD512
Preamp / DAC -
- D to A Converter - ES9038Pro
- Input Sensitivity - 1Vrms (Line, Volume = 0dB)
- 2Vrms (XLR, Volume = 0dB)
- 4.5mV (Phono MM, Volume = 0dB)
- Total Harmonic Distortion (THD) - < 0.001% (1KHz @ 0dBFS)
- Frequency Response - 20Hz - 20kHz (+/-0.1dB)
- Output lmpedance - 120 ohm
- Max.Sampling Frequency - Optical, Coaxial: 192KHz
- PC USB: PCM768kHz, DSD512
- Signal-to-noise Ratio (S/N) - > 113dB (A-weighted, RCA)
- > 117dB (A-weighted, XLR Direct)
Headphone Amplifier -
- Total Harmonic Distortion (THD) - < 0.01% (1kHz, 50mW )
- Output lmpedance - 2.35 ohm
- Load lmpedance - 20-600 ohm
- General -
- Standby Power Consumption - <0.5W
- Net Weight - 6.2kg
- Gross Weight - 8kg
- Dimensions(mm) (W x H x D) - 444 x 90 x 328 mm
- Carton Size (mm) (W x H x D) - 514 x 165 x 470 mm
- Finish - Silver / Black
- Power Requirements(depending on region) - 220-240V - 50/60Hz
- 100-120V - 50/60Hz
- Standard Accessories - Power Cord, Remote Control, User Manual, Antennas
Description
The Audiolab 9000Q Pre and 9000P Power Amplifier Package has been specially selected to give you the very best experience from the from the newest lines in the Audiolab 9000 Range.
The Power Amp - Audiolab 9000P Power Amplifier
The Audiolab 9000P Power Amplifier is a high-performance audio component designed to complement the 9000Q preamplifier, completing the Audiolab 9000 series. Built to meet the demands of audiophiles and music enthusiasts, the 9000P delivers unparalleled audio performance, offering flexibility, precision, and exceptional value. Whether used in a stereo setup or configured in a monoblock arrangement, this amplifier provides outstanding power and clarity, setting a new standard for audio excellence.
View Full Product Details Here
The Pre Amp - Audiolab 9000Q Pre Amplifier/h4>
The Audiolab 9000Q is a preamplifier that embodies the pinnacle of audio excellence in the 9000 series, offering a truly exceptional listening experience. Drawing inspiration from the award-winning 9000A integrated amplifier, the 9000Q takes the concept of audio performance to new heights, delivering an extraordinary soundstage.
View Full Product Details Here
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
