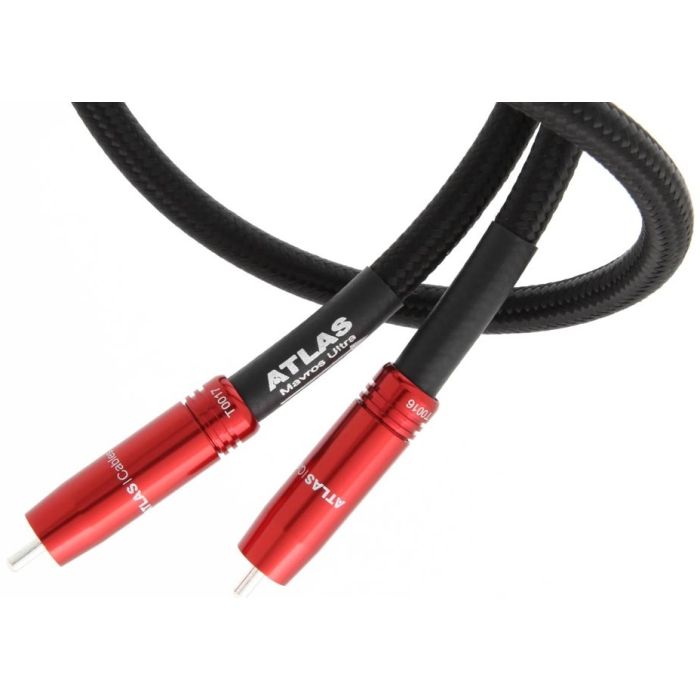

Atlas Mavros Ultra Digital Cable
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 5 years (on registration) |
| Product Type | Other |
Tech Specs
- Construction: Co-ax (1/0.7 Monofilament + 18/0.14)
- Material: Silver Plated OFC
- Dielectric: Microporous PTFE (Teflon™)
- Screen: Braid OFC with Al Mylar™, 100%
- Capacitance: 54.35 pF/m
- Inductance: 0.230 µH/m
- Resistance: 0.065 Ohms/m
- Impedance: 77.43 Ohm at (1MHz)
- VOP: 0.81
- Outside Diameter: 8.5mm
Description
Atlas Mavros Ultra Digital Cable is a follow on to the hugely successful Mavros Ultra RCA. It is a finely engineered wide banded cable that uses a silver-plated copper conductor for a superior sound quality and technical brilliance when it comes to preventing noise interference.
Siver-Plated Copper Conductor
The conductor of the Mavros Ultra Digital Cable is comprised of 18 siver plated pure copper strands of wire which are insulated by by micro-porous Teflon PTFE.
Greater Signal Strength
Due to the new and improve Teflon PTFE, a lower level of dielectric constant is achieved, going from the previous 2.1 to a new figure of 1.5. What this achieves is that higher speed signals are transmitted, and a more dynamic and precise range is delivered.
75 Ohms Termination
Mavros Ultra Digital Cable has a 75 Ohms termination impedance at 1 MHz with a low conductor to conductor charging ability of close to 50pf per metre. This product ensures accurate transmission of high speed digital signals.
Key Features
- RCA Plugs
- OFC Copper
- PTFE
- Co-ax
